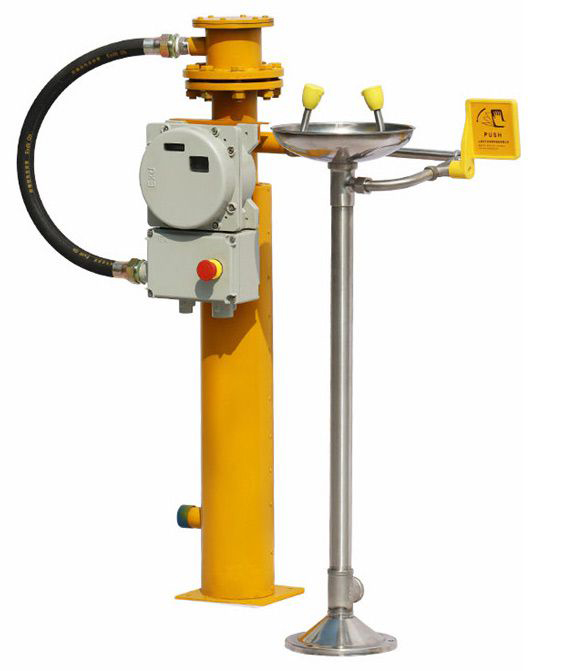

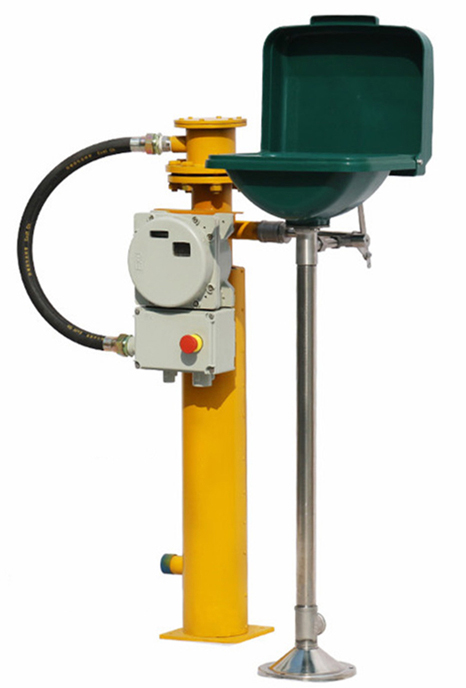

Electric Heating Emergency Eyewash
Electric heating emergency eyewash will become useless if installed in cold regions where the weather temperature is too low, because in that case water in the pipe will freeze and stop the unit from working properly. When employees exposed to caustic chemicals or hazardous materials desperately need emergency flushing but water doesn’t come out, they will suffer longer and more severe injuries. Therefore, we advise you to have electric heating emergency showers & eyewashes in cold area locations to ensure that the water supply is not be affected by freezingly cold weather.
- DAAO6623EH-X
- DAAO6623EH-D
- DAAO6623EH-EH
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-55℃
- Inlet size: NPT 1/2”
- Power: 12kW
- Voltage: 380V/50HZ
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Height: 1310mm (can be customized)
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-55℃
- Inlet size: NPT 1/2”
- Power: 12kW
- Voltage: 380V/50HZ
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Material: 304/316L stainless steel and ABS
- Height: 1310mm (can be customized)
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-55℃
- Inlet size: NPT 1/2”
- Power: 12kW
- Voltage: 380V/50HZ
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
Spare Parts & Accessories
Water filter / Y strainer
Emergency Shower head
Ex-pro alarm
Scald protection valve
Pressure reducing valve
Ball valve
