Electric Heating Emergency Shower & Eyewash
Electric heating emergency shower and eyewash is a type of safety protection equipment that has heating function. When the temperature of water in the pipe is lower than the set value, it can automatically start heating. In this way, we can prevent water from freezing and ensure users’ eyes won’t be hurt or irritated by cold water.
The following are some examples of the electric heating emergency shower and eyewash that we’ve made. If you do have need, welcome inquiry at any time.
- DAAO6615-EH
- DAAO6615EH-D
- DAAO6615EH-X

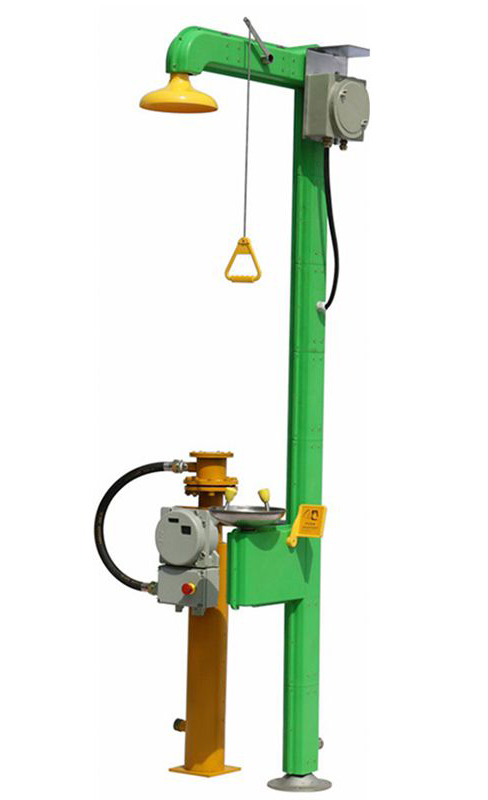

DAAO6615-EH Cable Heating Emergency Shower & Eyewash
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Material: 304/316L stainless steel and ABS and insulated cotton
- Height: 2410 mm
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-55℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 3.5 kW
- Voltage: 380V/50HZ
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75,7 L/min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel

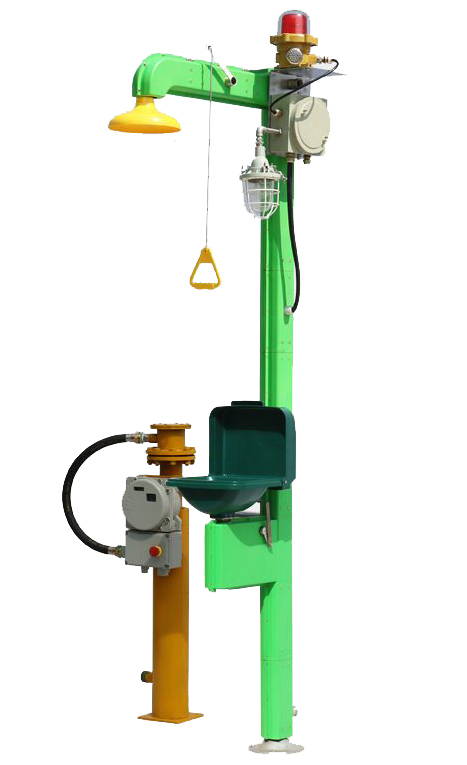

DAAO6615EH-D Electric Heating Emergency Shower & Eyewash
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Material: 304/316L stainless steel and ABS
- Height: 2410 mm (can be customized)
- Pipe wall thickness: 2.5 mm
- Working pressure: 0.2 MPa-0.8 MPa
- Water pressure: 0.2 MPa-0.8 MPa
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 16kW
- Voltage: 380V/50HZ
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75,7 L/min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel

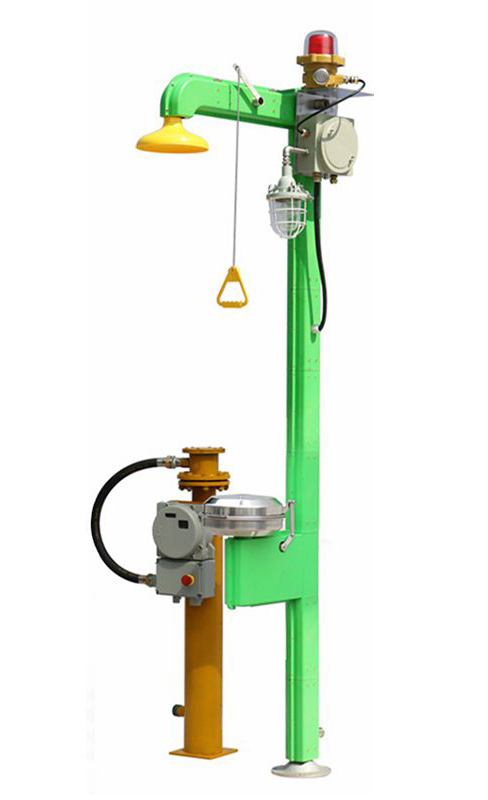

DAAO6615EH-X Explosion-proof Electric Heating Emergency Eyewash Shower
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Material: 304/316L stainless steel and ABS
- Height: 2410 mm (can be customized)
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-55℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 16 kW
- Voltage: 380V/50HZ
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75,7 L/min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
Water filter / Y strainer
Emergency Shower head
Ex-pro alarm
Scald protection valve
Pressure reducing valve
Ball valve
DAAO has been focusing on the production of emergency safety showers and eye wash units since 2007. This is why we have a huge variety of emergency eyewash equipment and safety showers such as freestanding safety showers, wall mounted eye wash stations, portable eye wash stations as well as emergency equipment accessories to suit the needs of quick and efficient full body decontamination. There is no limit to the applications, we can design and manufacture emergency eyewash stations and decontamination booths to suit your workplaces. Our safety showers and eyewash stations are engineered and made to international safety standards, they are approved in protecting employees from suffering major injuries due to contact with hazardous materials.
