Cable Heated Emergency Shower & Eyewash
Heat traced emergency shower & eyewash is ideal for application in freezingly cold area, as it has built-in heat trace cable and insulation layer to prevent water in the pipe from freezing and avoiding unwanted irritancy to user’s eyes.
Safety eyewashes and showers for workshops such as chemical plants and electronics factories requires continuous flow of tepid water to rinse the affected area carefully. Such equipment should be able to support shower or washing for at least 15 minutes whenever emergency occurs. Researches and experiments have proved that, whether the water rushing out of the equipment is too hot or too cold, it will cause more injuries to user’s eyes or body. The best temperature for emergency rinsing is 15℃.
For this reason, the eyewash designer team of DAAO developed heat traced emergency shower & eyewash, which provides warm water in emergency and protects the pipe against frostbite.As a China emergency safety protection equipment manufacturer with 15 years of experience, DAAO can design its products according to clients’ special needs. You can see our heat traced emergency shower & eyewash units and find the type that you are interested in. If you have any question or custom need, please contact us.
- DAAO6615-E
- DAAO6615-EH-Z
- DAAO6615-EF-X
- DAAO6615-EF-G
- DAAO6615-EF
- DAAO6620-DF
- DAAO6615-EF-D

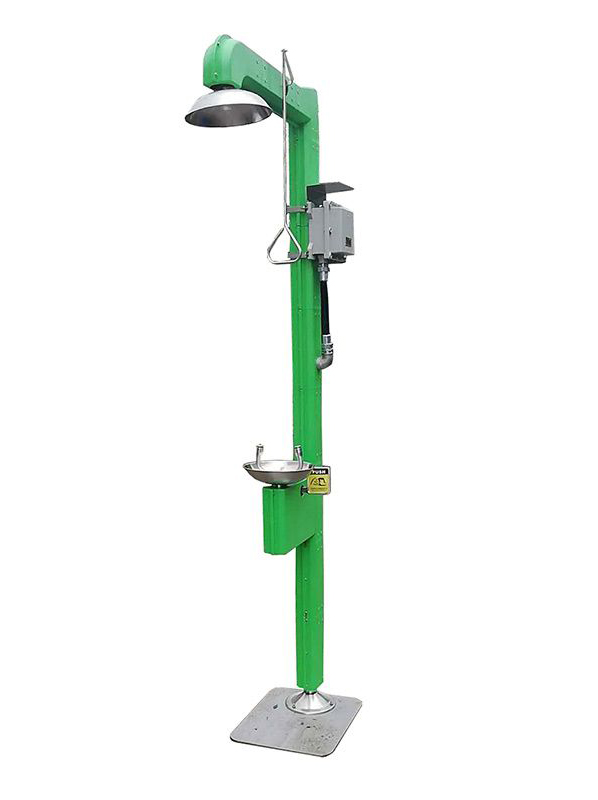

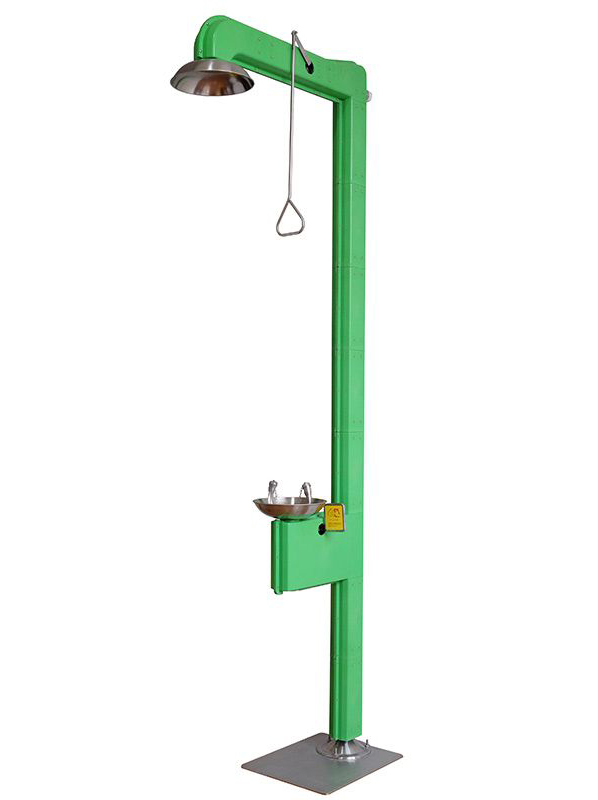

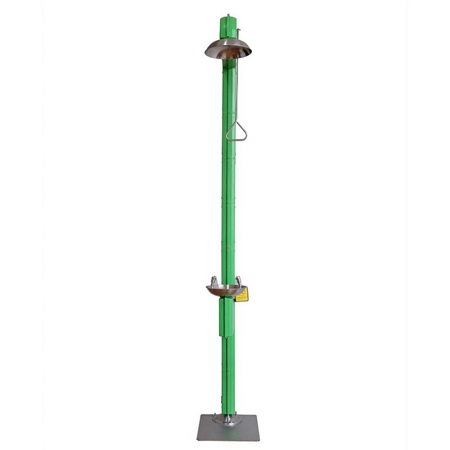

DAAO6615-E Heat Traced Combination Emergency Shower
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel, ABS and PP
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 140W
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75,7 L/min
- Explosion-proof: Exd IICT4, Exd IICT6, BT4, BT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
DAAO6615-EH-Z Heat Trace Shower & Eye/Face Wash Unit
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 140W
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT4, Exd IICT6, BT4, BT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
DAAO6615-EF-X Safety Shower & Eyewash with Trace Heating
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 230W
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT4, Exd IICT6, BT4, BT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel

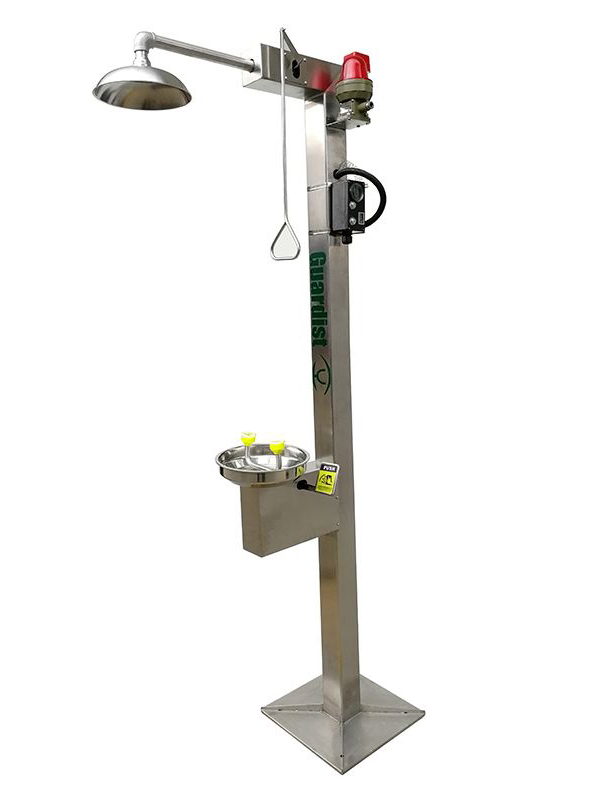

DAAO6615-EF-G Heat Traced Safety Shower & Eyewash Station
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel and PP
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 230W
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT4, Exd IICT6, BT4, BT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel

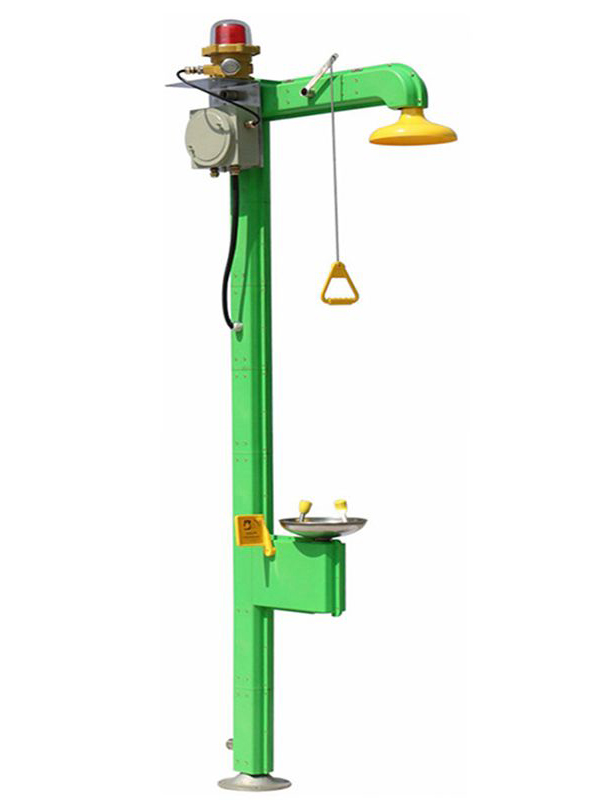

DAAO6615-EF Cable Heated Emergency Shower & Eyewash
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 140W
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT4, Exd IICT6, BT4, BT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel

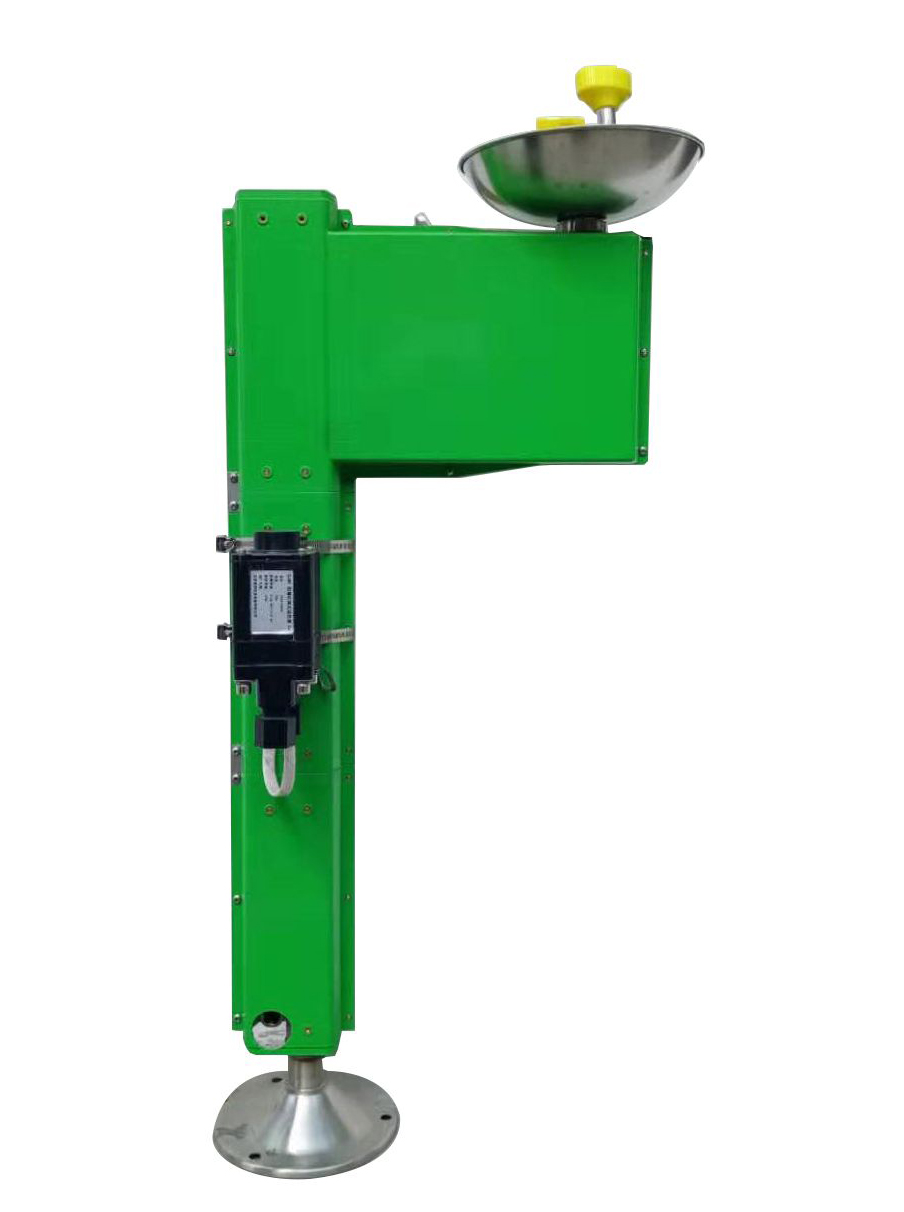

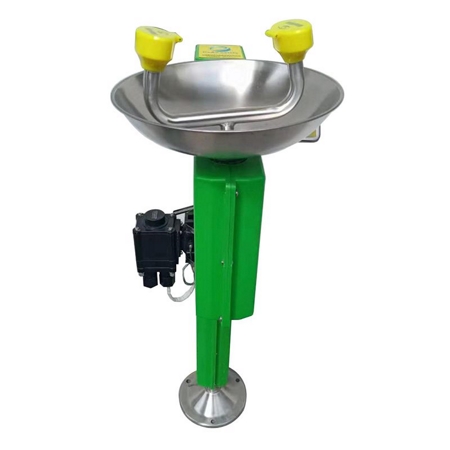

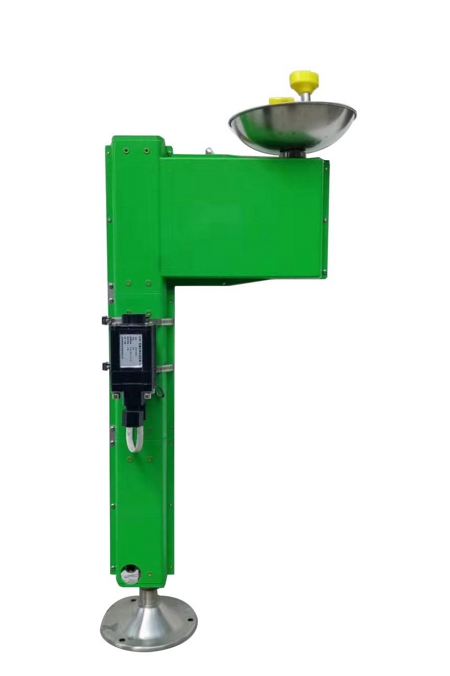

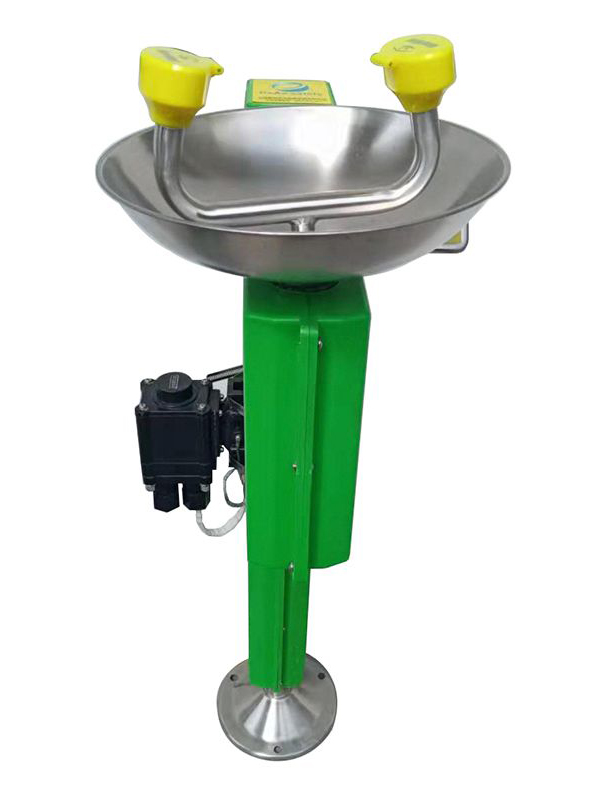

DAAO6620-DF Heat Traced Combination Eyewash & Safety Shower
Compliance: ANSI Z 358.1-2014 EN15154.1 / 2: 2006
Specifications- Material: 304/316 stainless steel and ABS
- Height: 1010mm
- Flow rate (eye/face wash): 12-18 L / min
- Pipe wall thickness: 2.5 mm
- Power supply: 220V
- Water pressure: 0.2-0.8 MPa
- Explosion-proof: Exd IICT4, Exd IICT6, BT4, BT6
- Ingress protection: IP65
- Gross power: 140W
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
DAAO6615-EF-D Heat Traced Emergency Shower & Eye/Face Wash
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Power: 140W
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Explosion-proof: Exd IICT4, Exd IICT6, BT4, BT6
- Ingress protection: IP65
- Options: color, material, dimension, booster pump for inlet, sewage pump, explosion-proof, ingress protection, etc.
- Material for shower head and bowl: ABS or stainless steel
Water filter / Y strainer
Emergency Shower head
Ex-pro alarm
Scald protection valve
Pressure reducing valve
Ball valve
DAAO has been focusing on the production of emergency safety showers and eye wash units since 2007. This is why we have a huge variety of emergency eyewash equipment and safety showers such as freestanding safety showers, wall mounted eye wash stations, portable eye wash stations as well as emergency equipment accessories to suit the needs of quick and efficient full body decontamination. There is no limit to the applications, we can design and manufacture emergency eyewash stations and decontamination booths to suit your workplaces. Our safety showers and eyewash stations are engineered and made to international safety standards, they are approved in protecting employees from suffering major injuries due to contact with hazardous materials.
