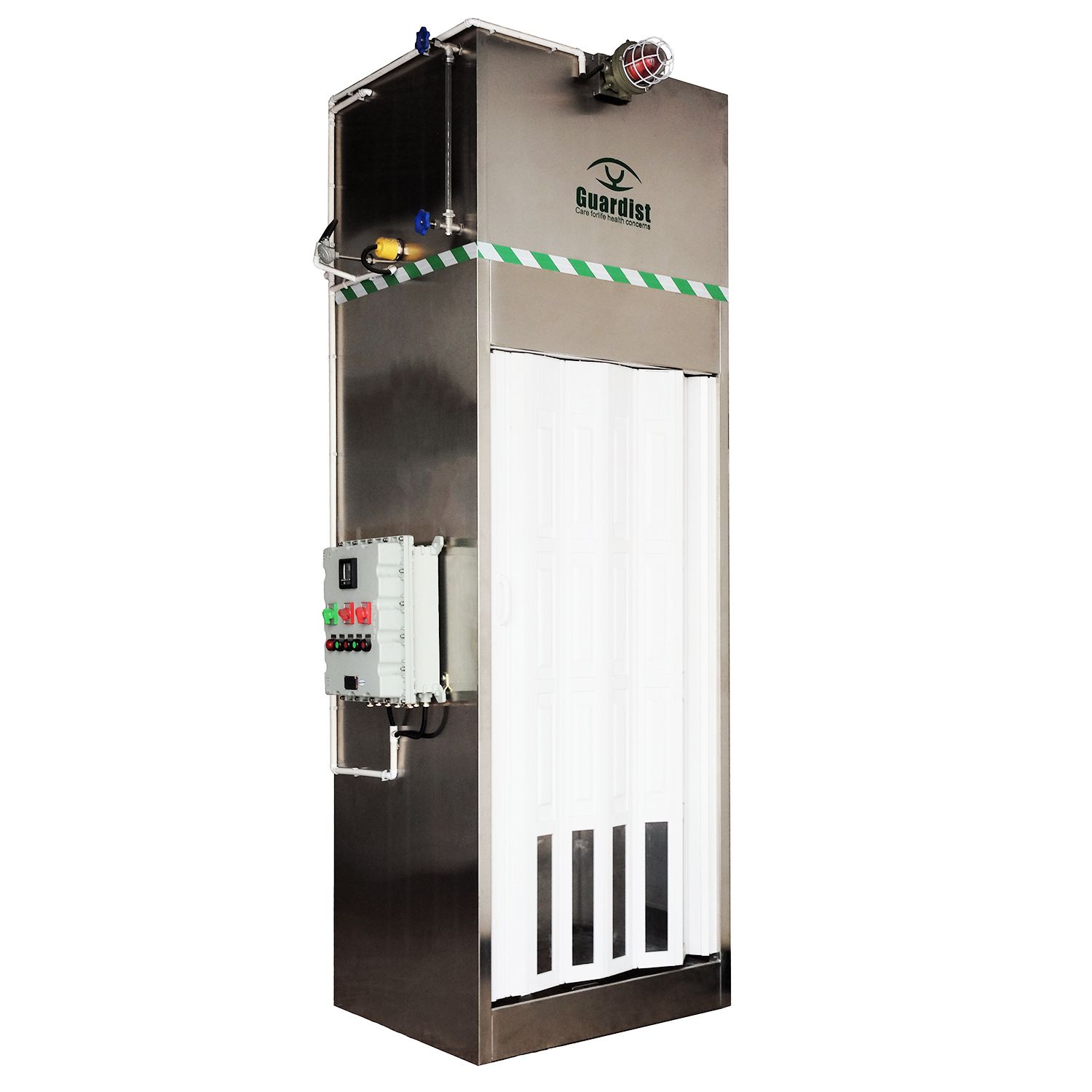

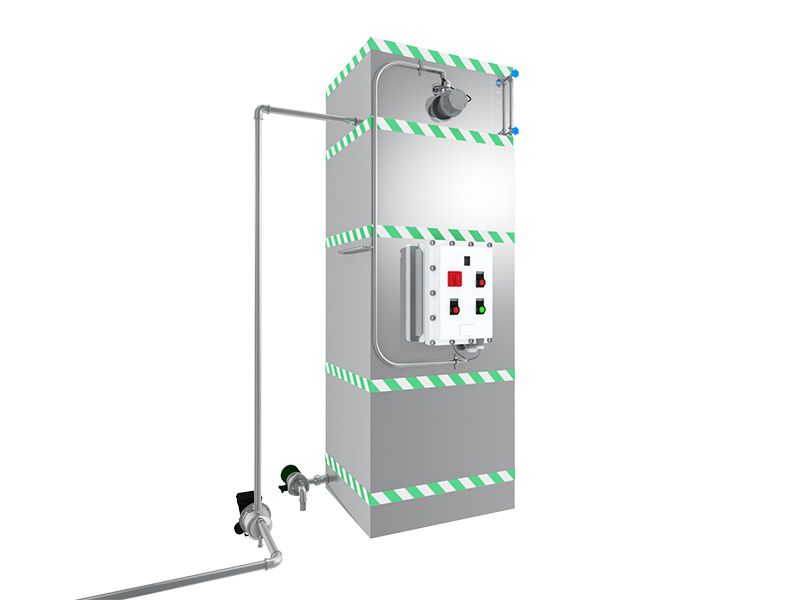

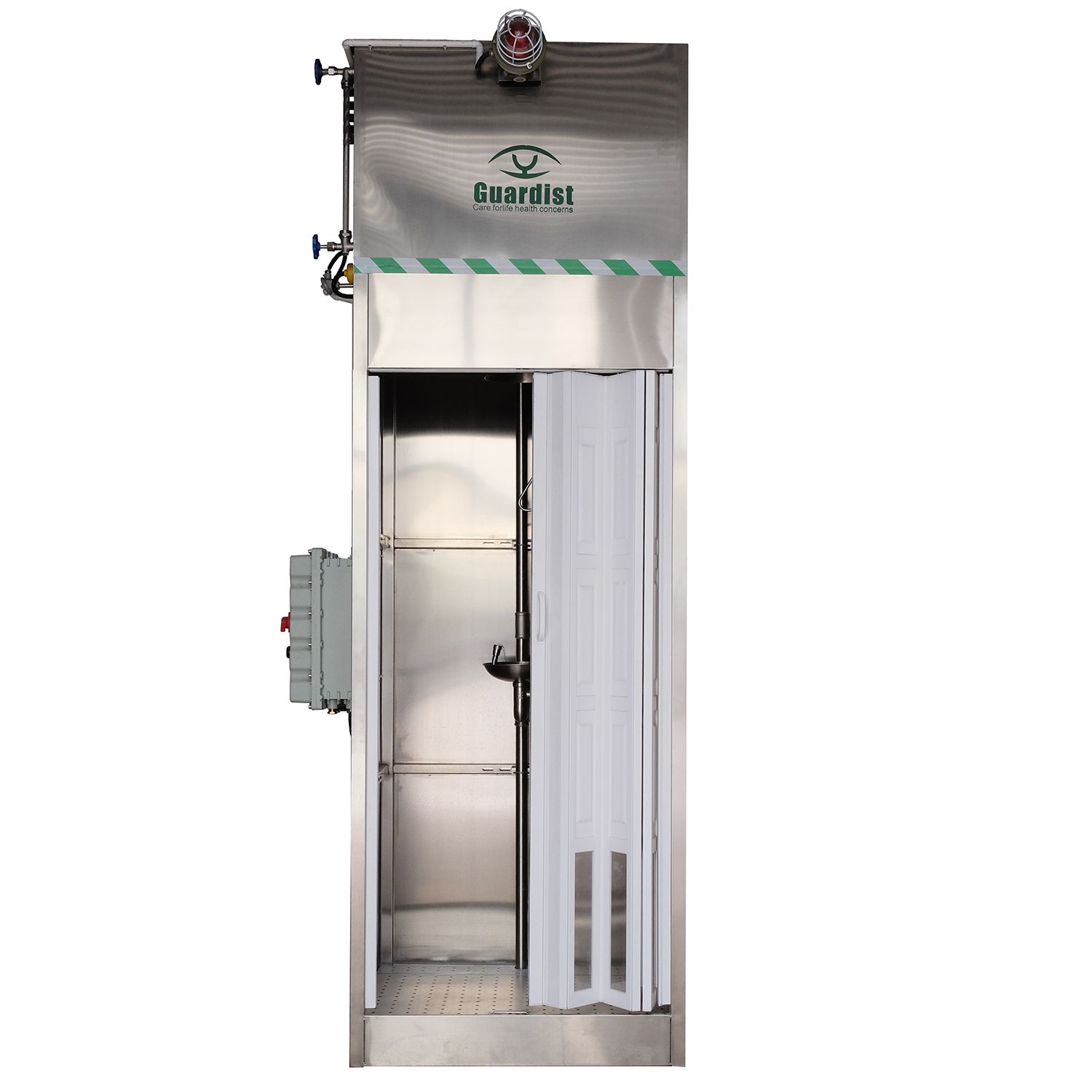

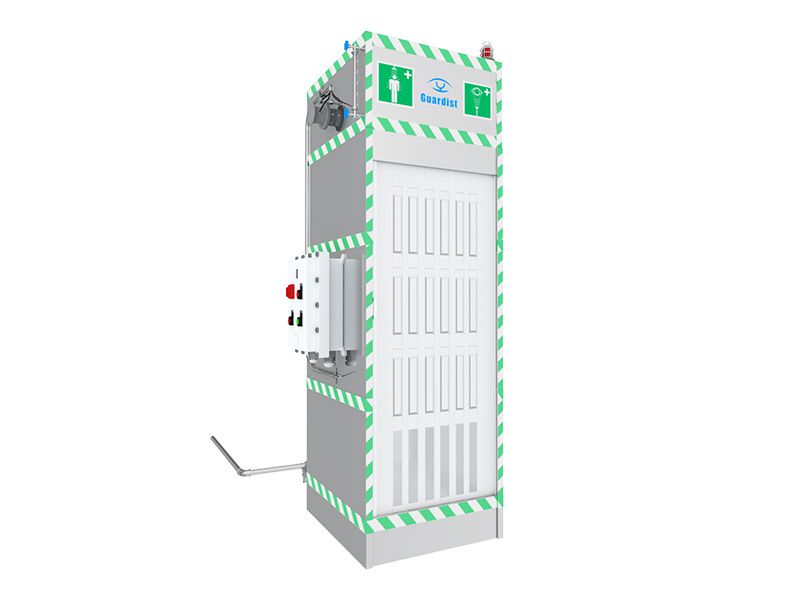

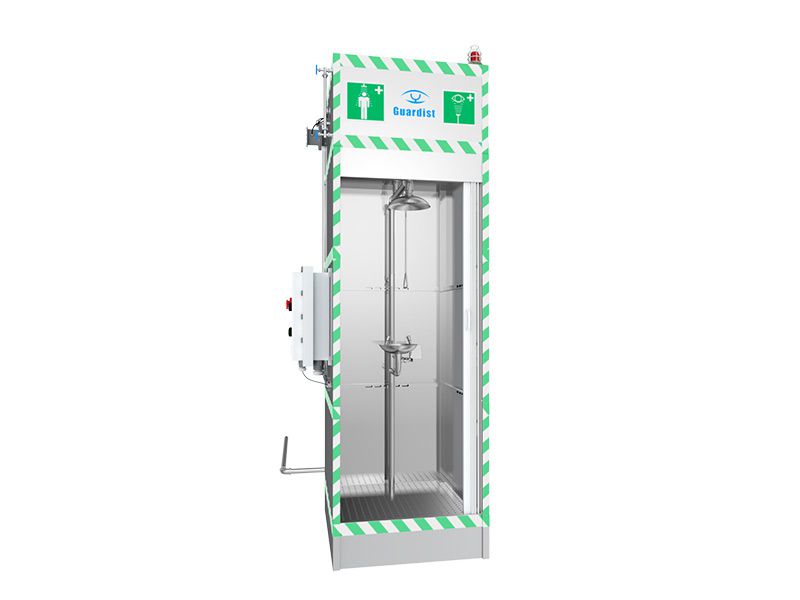

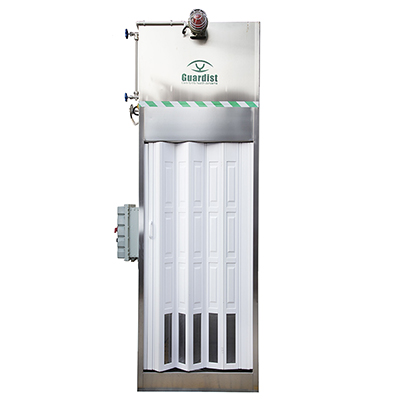

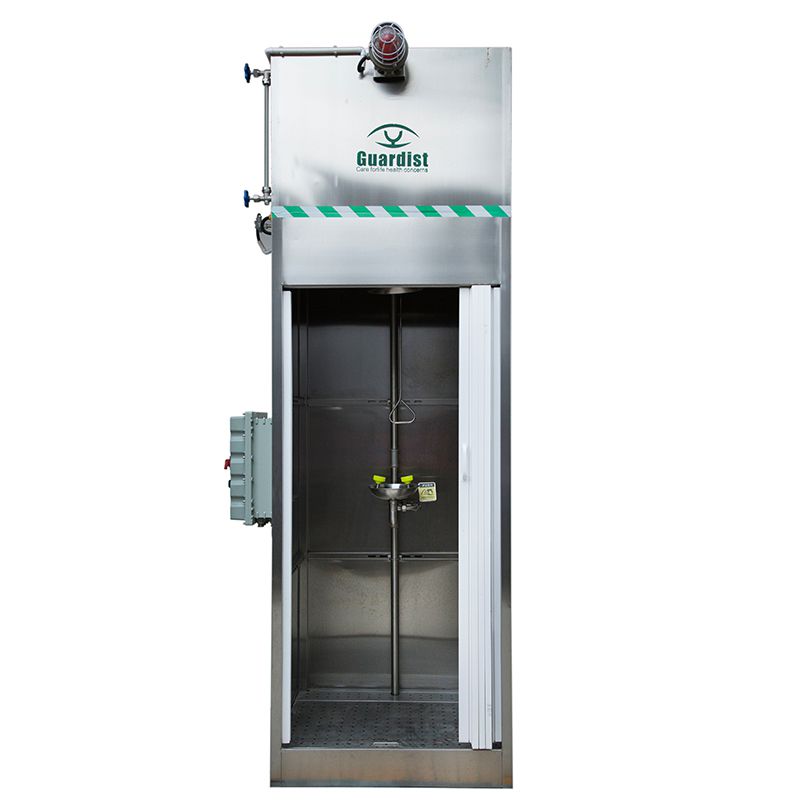

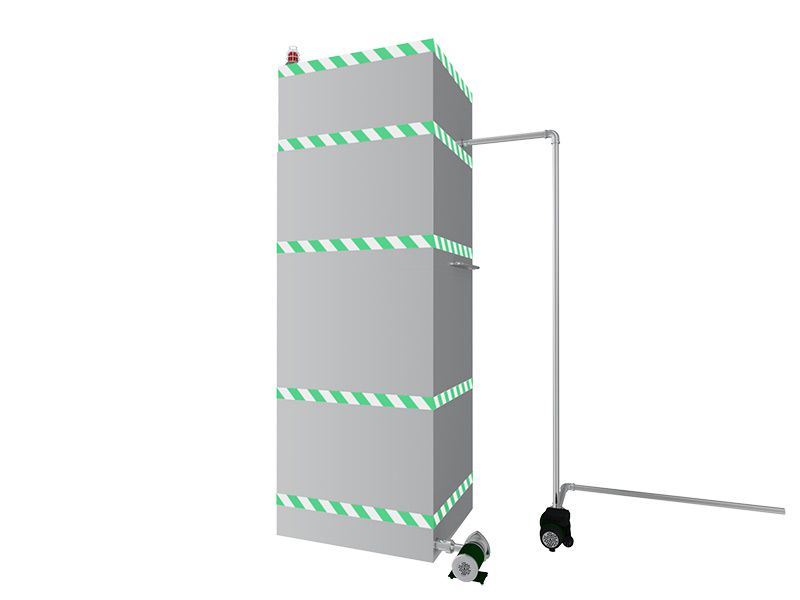

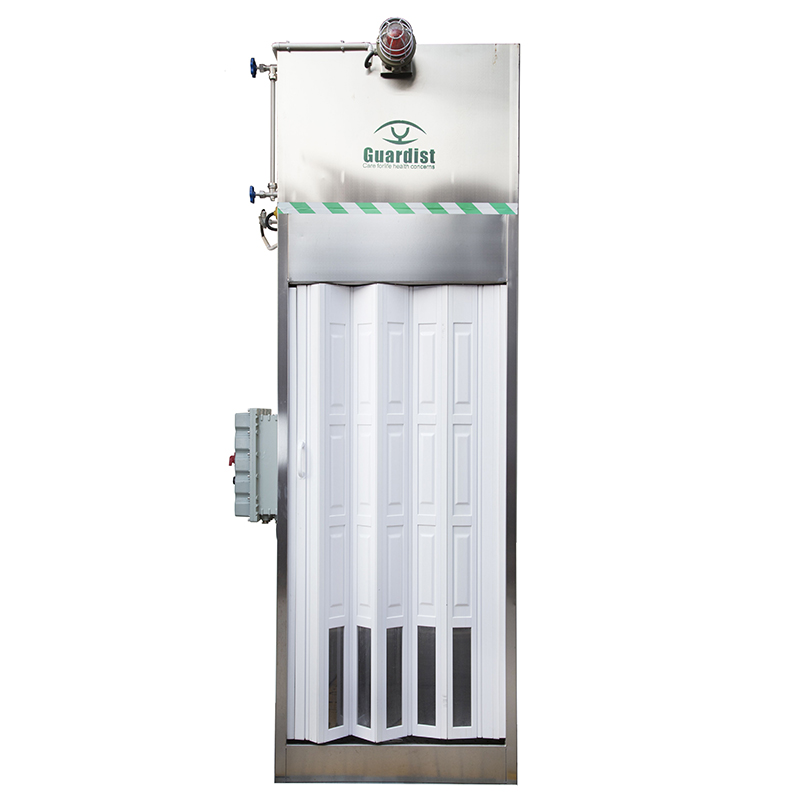

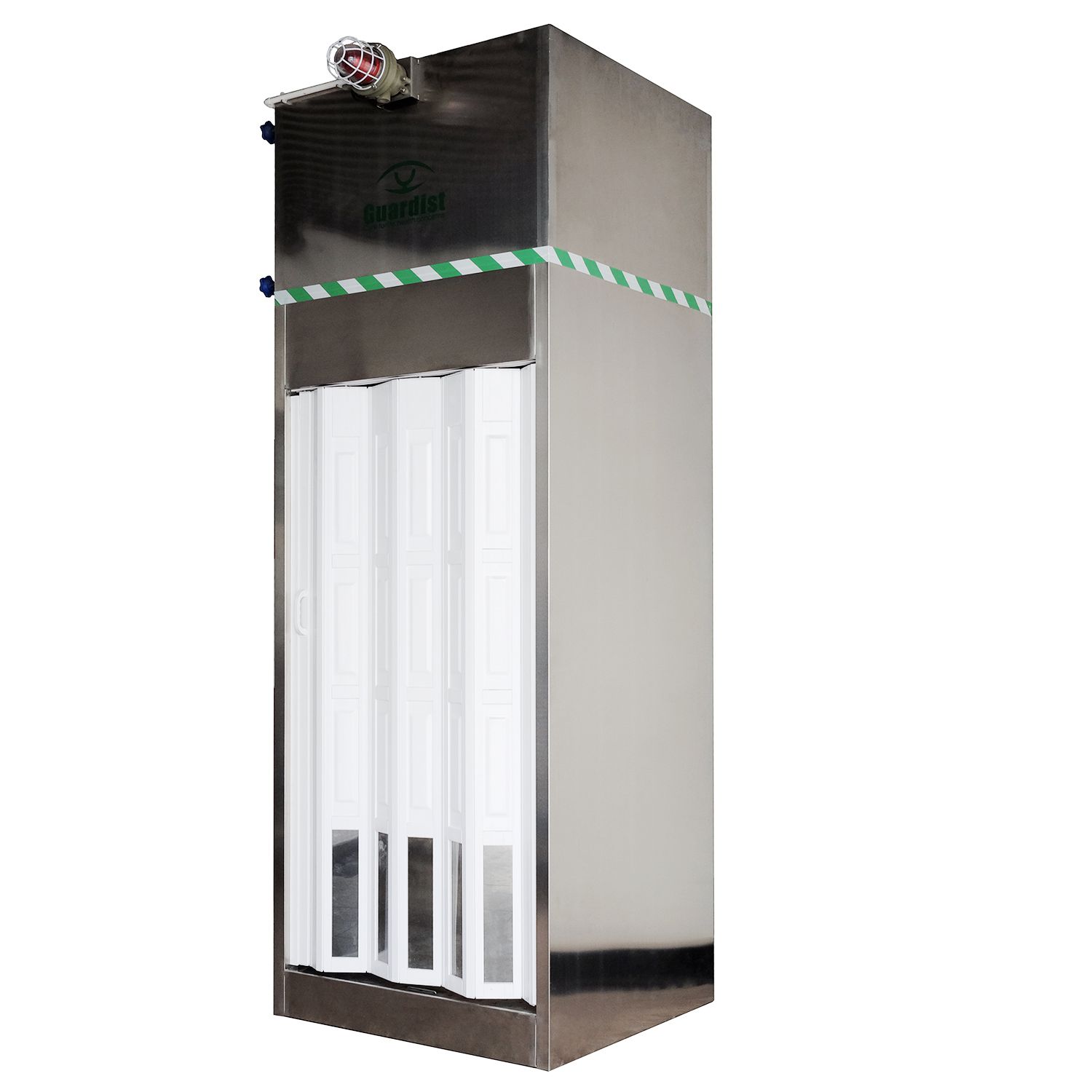

Emergency Cubicle Shower
Compliance: ANSI Z 358.1-2016, EN15154.1 / 2: 2006
Features- Large space and full functions
- 304 stainless steel, food grade safety
- Integral casting, explosion-proof
- Custom service
- Adjustable flow rate
- Material: 304 stainless steel (or SS316L stainless steel)
- Wall thickness: 1.2mm;
- Pipe wall thickness: 2.5-3mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -35°C -55°C
- Power supply: 220V / 380V (can be customized)
- Inlet size: NPT 1 1/4“
- Drain size: NPT 1 1/4“
- Flow rate (eyewash): ≥11.4L/ min
- Flow rate (shower): ≥75.7L/ min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65

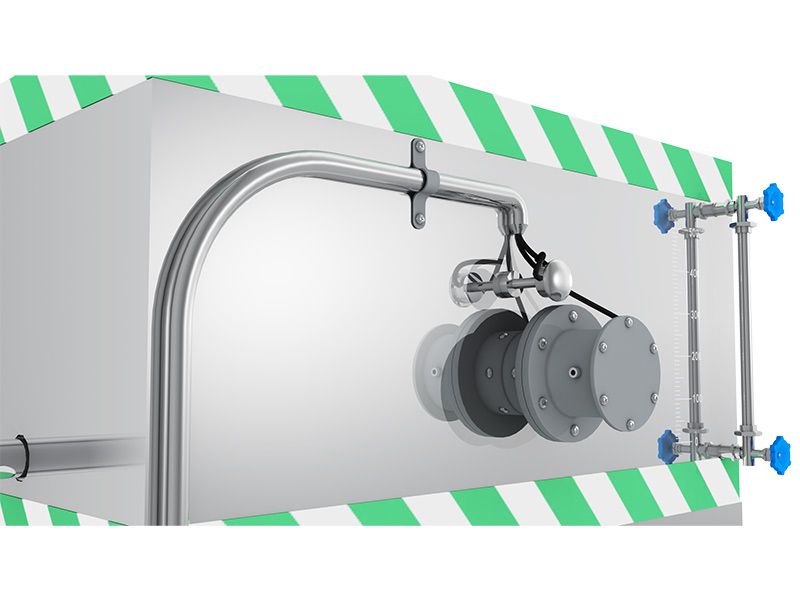

- Options: color, material, appearance and size, cooling and heating device, liquid level gauge, booster pump for inlet, sewage pump, explosion-proof, ingress protection, audible and visual alarm, remote wireless alarm
- Material for shower head and bowl: ABS or stainless steel
- Installation dimension: 1000 * 900 * 3100mm
- Tank dimension: 1150 * 1150 * 1200 (can be customized)
As a China emergency safety protection equipment manufacturer with 15 years of experience, DAAO can design its products according to clients’ special needs. You can see our heat traced emergency shower & eyewash units and find the type that you are interested in. If you have any question or custom need, please contact us.
- Water filter / Y strainer

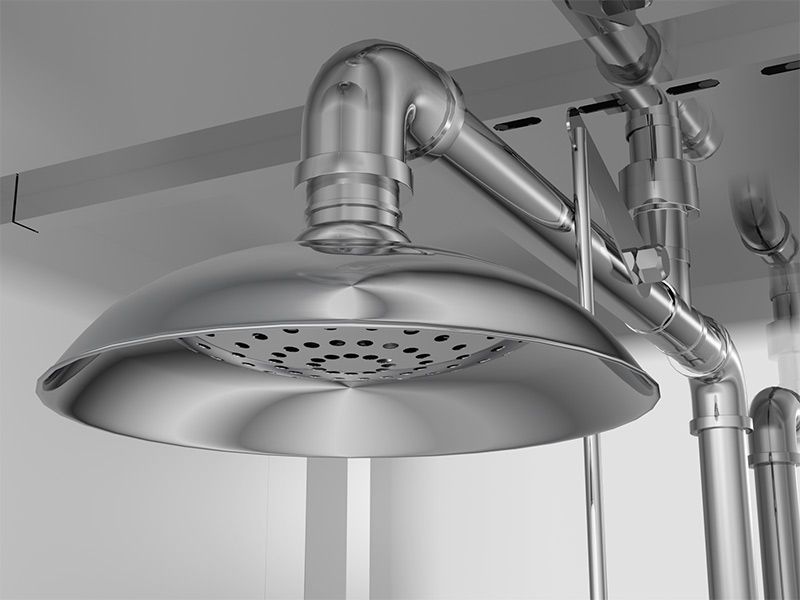

- Emergency Shower head
- Ex-pro alarm
- Scald protection valve
- Pressure reducing valve
- Ball valve
