العربيةEnclosed Emergency Safety Shower
Enclosed emergency safety shower provides enclosed space for safe shower, which avoids unwanted chemical splashes. It is perfect for workplaces that have limited space as such design ensures safety both inside and outside the shower area. The following are examples of enclosed emergency safety showers that we’ve made. If you have special needs, please contact us.
- DAAO6604-8
- DAAO6602

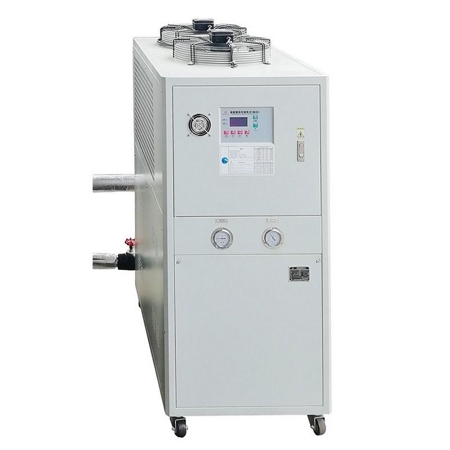

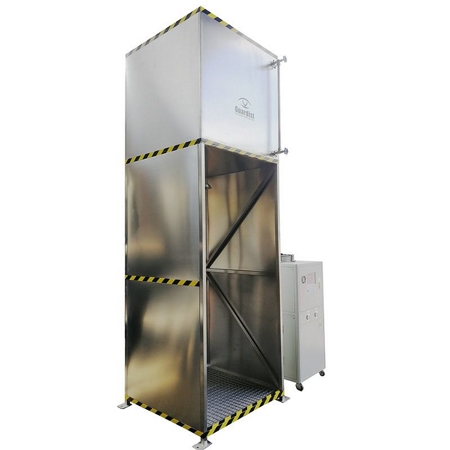

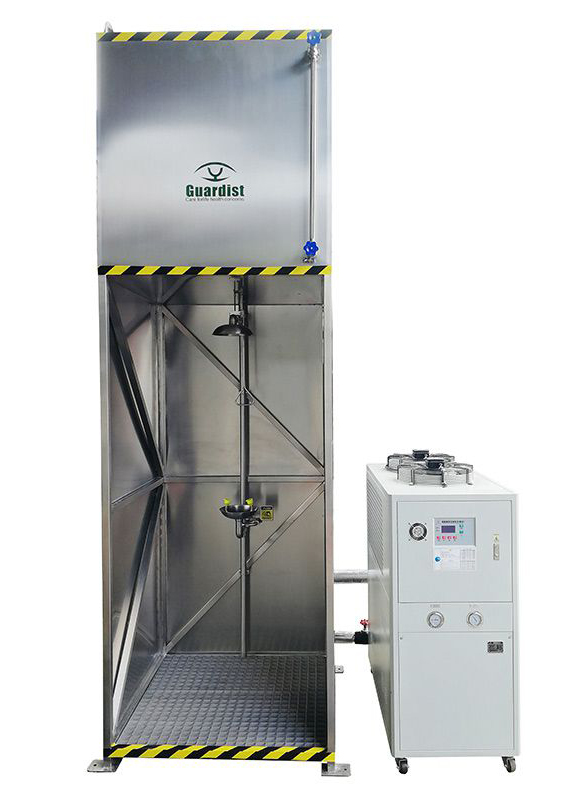

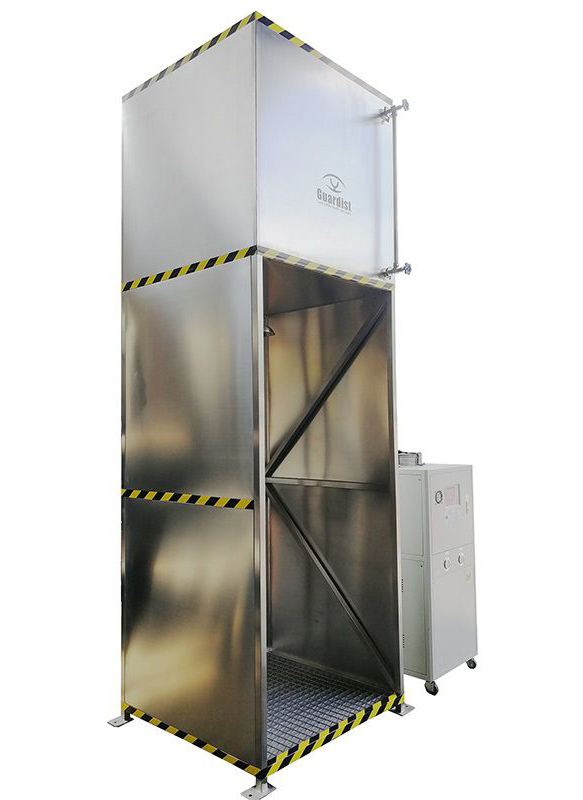

DAAO6604-8 Emergency Shower Station with Water Cooling & Heating
Compliance: ANSIZ 358.1:2014, EN15154.1/2:2006
Specifications- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: -25 °C -55 °C
- Power supply:220V/380V
- Inlet size: NPT 1 1/4
- Drain size: NPT 1 1/4
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75,7 L/min
- Explosion-proof: Exd IICT6
- Ingress protection: IP65
- Options: color, material, appearance and size, cooling and heating device, liquid level gauge, booster pump for inlet, sewage pump, explosion-proof, ingress protection, audible and visual alarm, remote wireless alarm
- Material for shower head and bowl: ABS or stainless steel
- Installation dimension: 1000*900*3100 mm
- Tank dimension:1000*900*900 mm (can be customized)

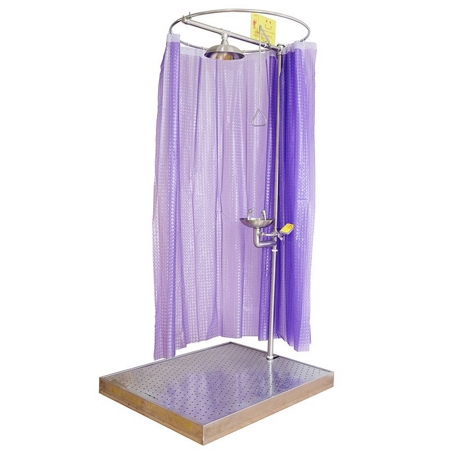

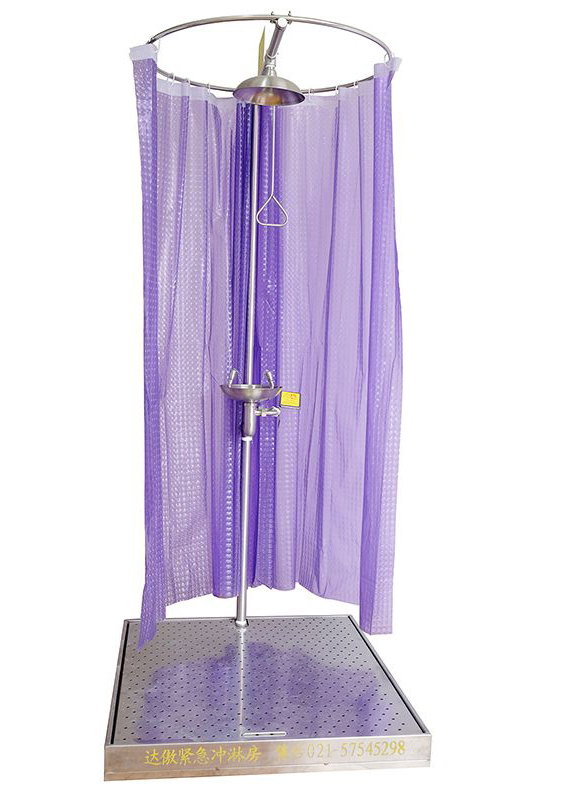

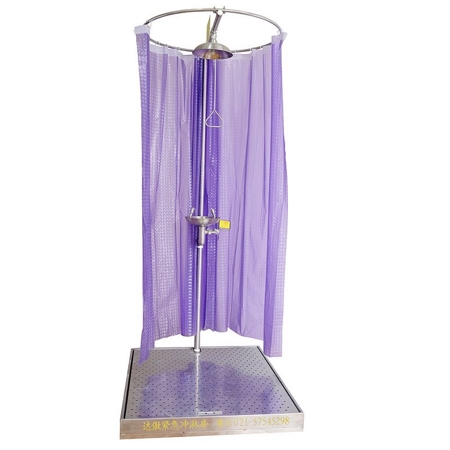

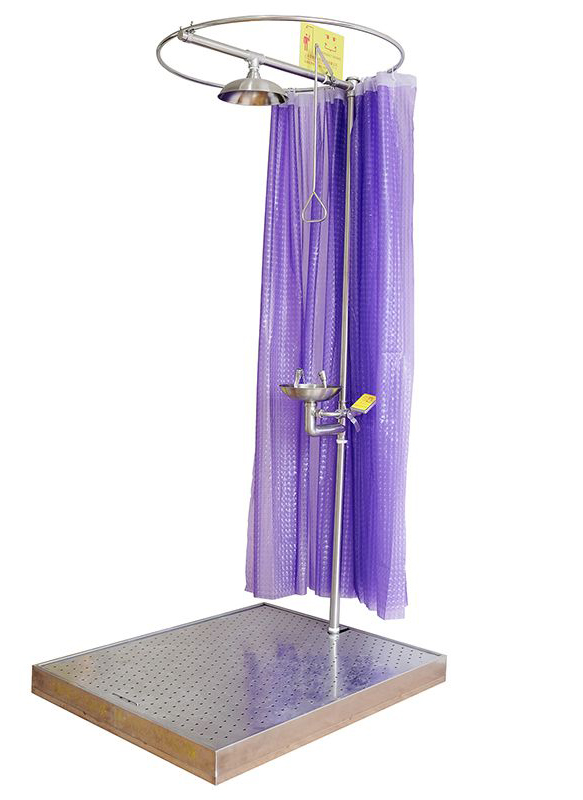

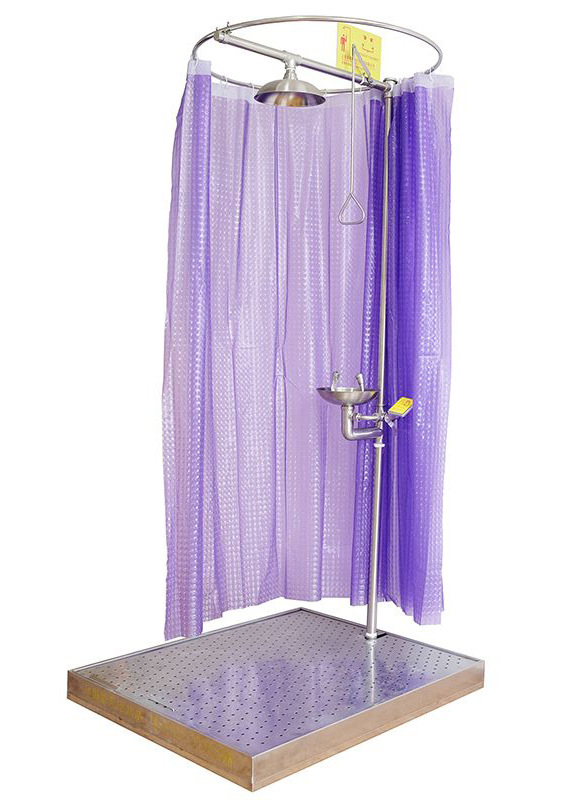

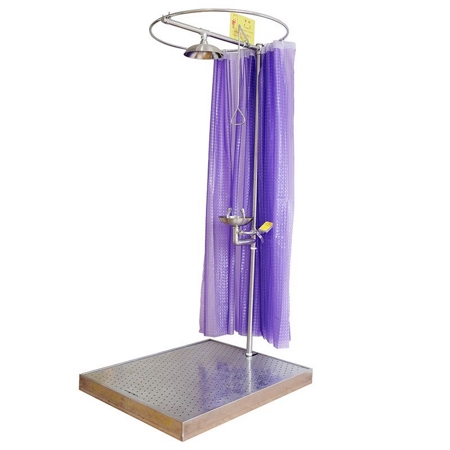

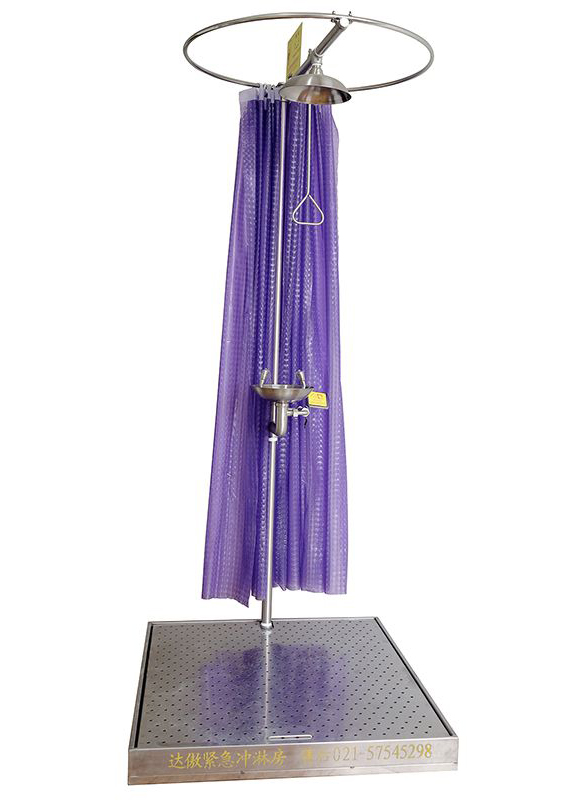

DAAO6602 Curtain Booth Type Emergency Shower
Compliance: ANSIZ 358.1:2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel and PVC
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10 ° C -55 ° C
- Inlet size: NPT 1 1/4
- Drain size: NPT 1 1/4
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75,7 L/min
Water filter / Y strainer
Emergency Shower head
Ex-pro alarm
Scald protection valve
Pressure reducing valve
Ball valve
DAAO has been focusing on the production of emergency safety showers and eye wash units since 2007. This is why we have a huge variety of emergency eyewash equipment and safety showers such as freestanding safety showers, wall mounted eye wash stations, portable eye wash stations as well as emergency equipment accessories to suit the needs of quick and efficient full body decontamination. There is no limit to the applications, we can design and manufacture emergency eyewash stations and decontamination booths to suit your workplaces. Our safety showers and eyewash stations are engineered and made to international safety standards, they are approved in protecting employees from suffering major injuries due to contact with hazardous materials.
