Pedestal Mounted Emergency Eyewash
Pedestal mounted emergency eyewash is easily installed on the ground, providing instant, reliable and effective eyewash solutions for a variety of workplaces. It has foot pedal, so users do not need to activate the eyewash using hand.
The following are examples of pedestal mounted emergency eyewashes that we’ve made. If you have special needs, please contact us.
- DAAO6623-J
- DAAO6623
- DAAO6623-X
- DAAO6623-D
- DAAO6620-J
- DAAO6620-D
- DAAO6620-X

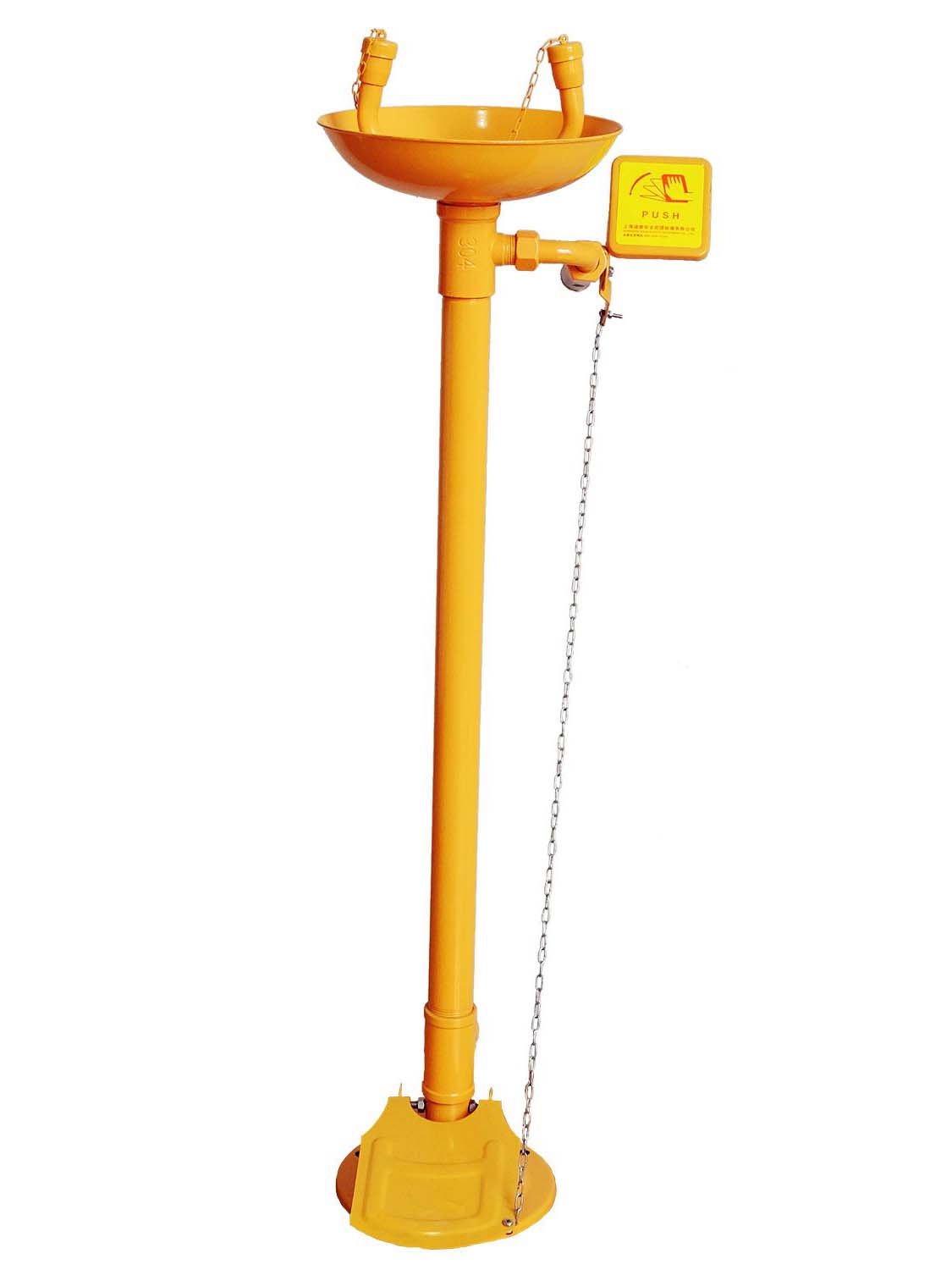

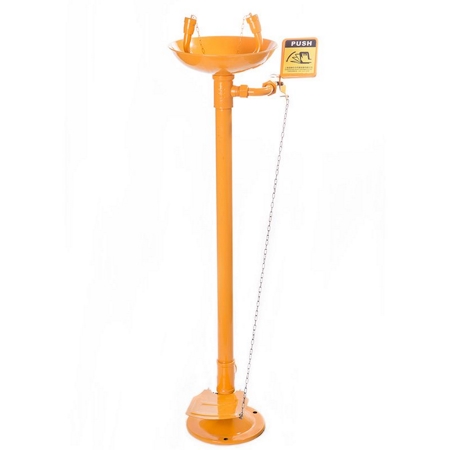

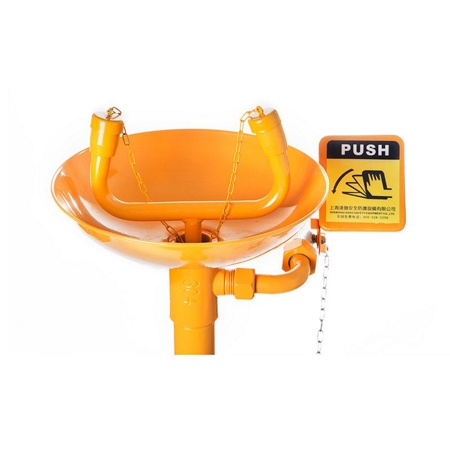

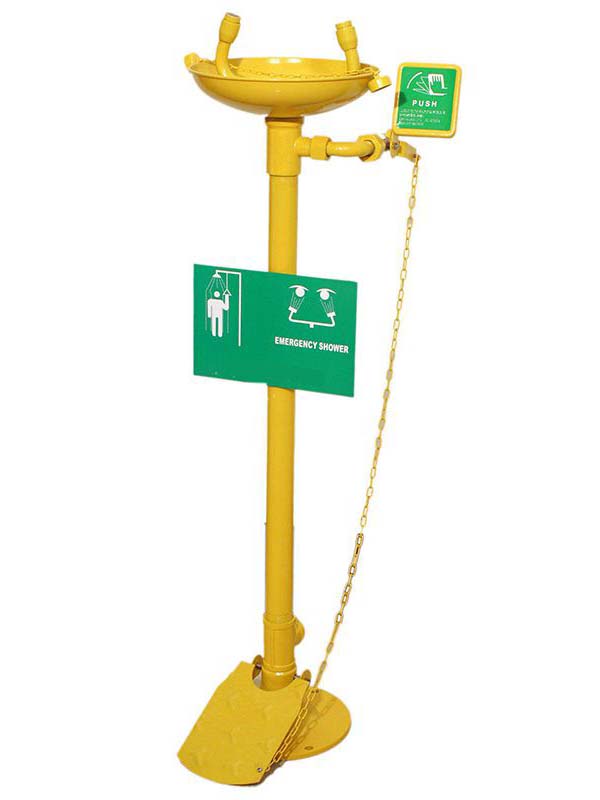

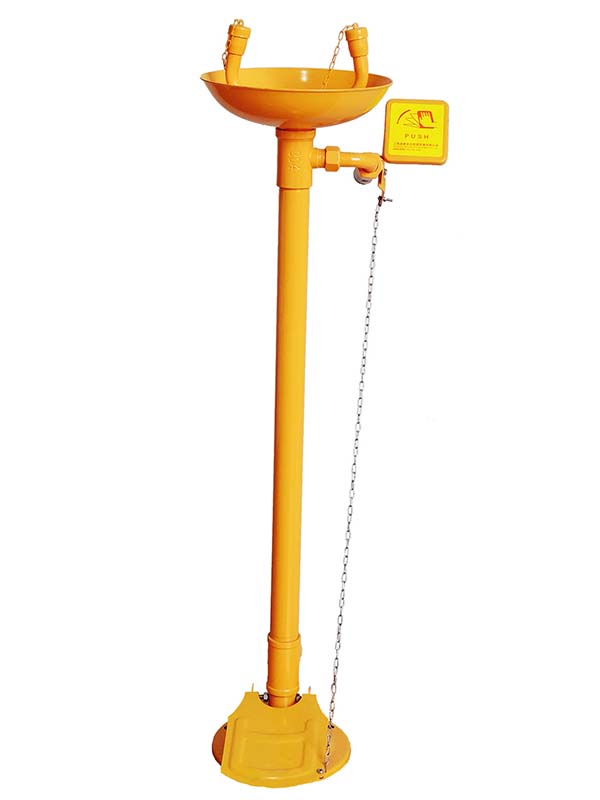

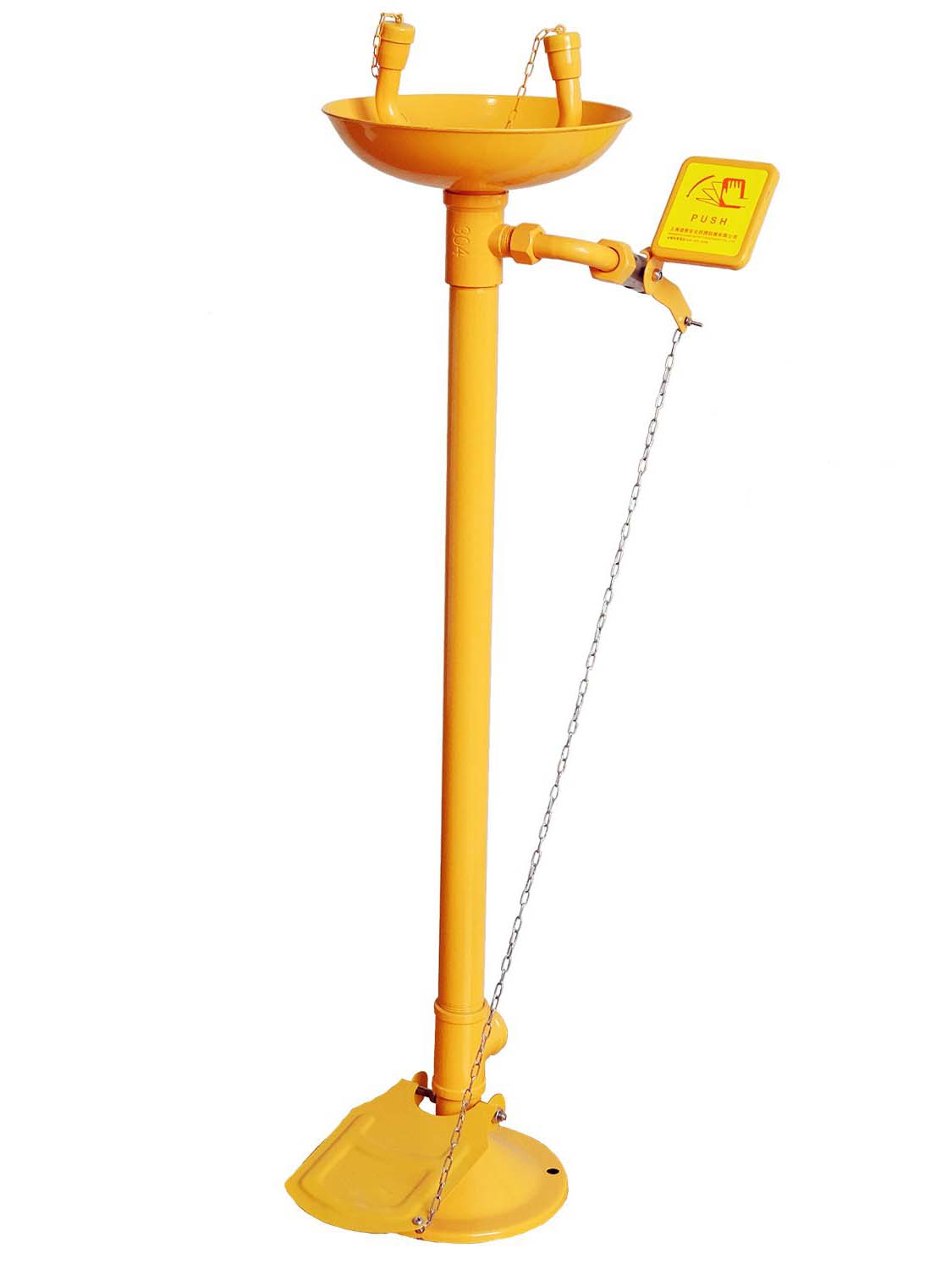

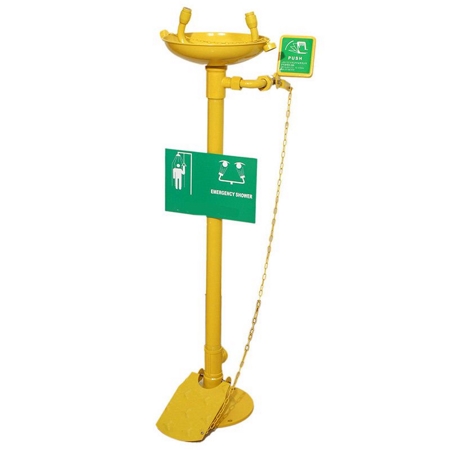

DAAO6623-J Pedestal Mounted Eyewash with Foot Pedal
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 1110mm (can be customized)
- Material: 304/316L stainless steel and ABS
- Standard: ANSI Z 358.1-2014, EN15154.1/2:2006
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-55℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel

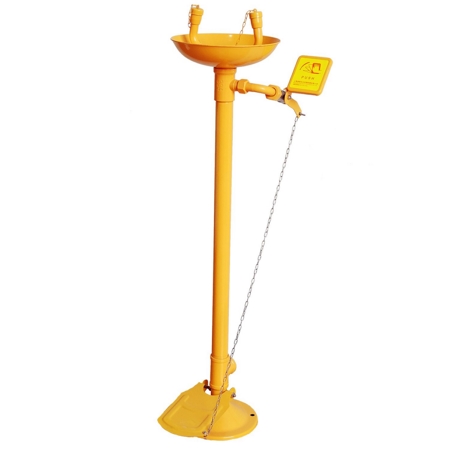

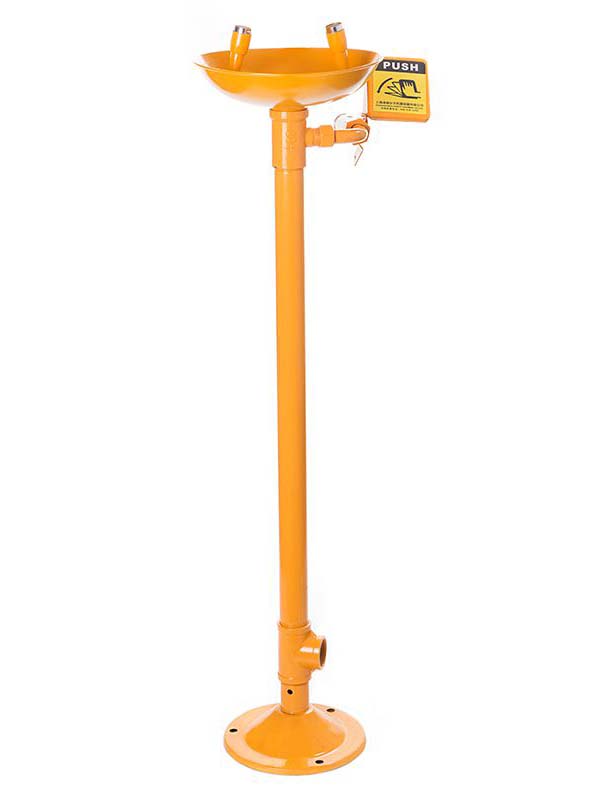

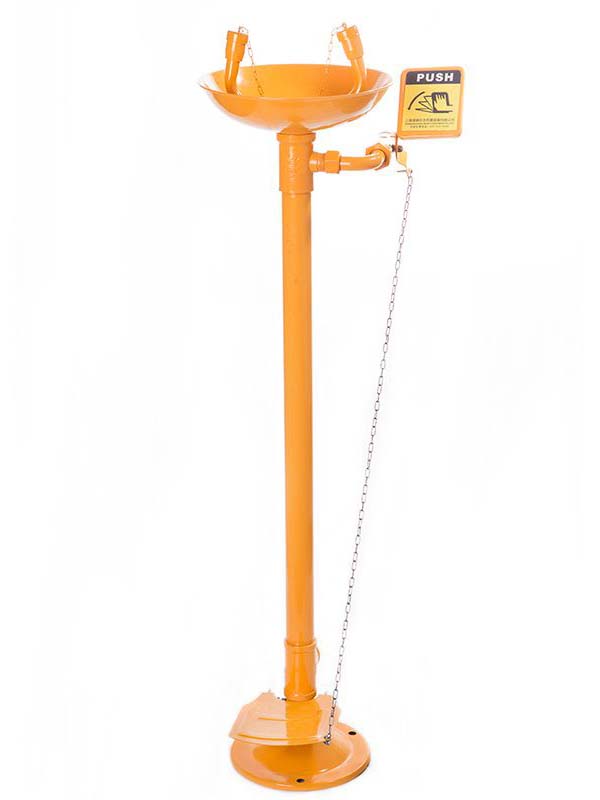

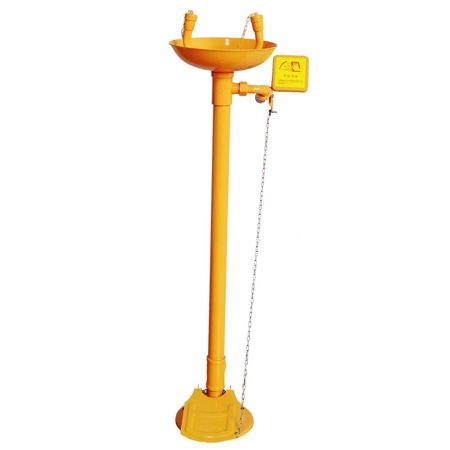

DAAO6623 Pedestal Mounted Emergency Eyewash with ABS Basin
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 1110mm (can be customized)
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-55℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel

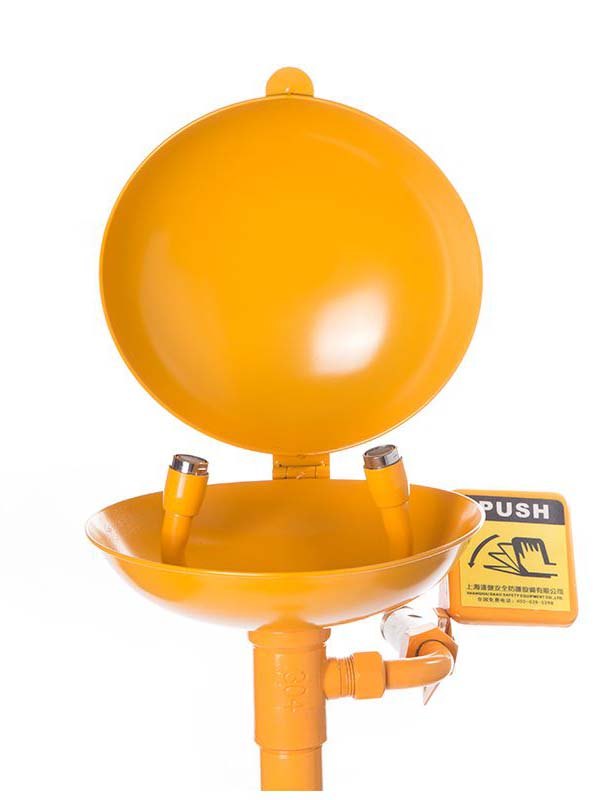

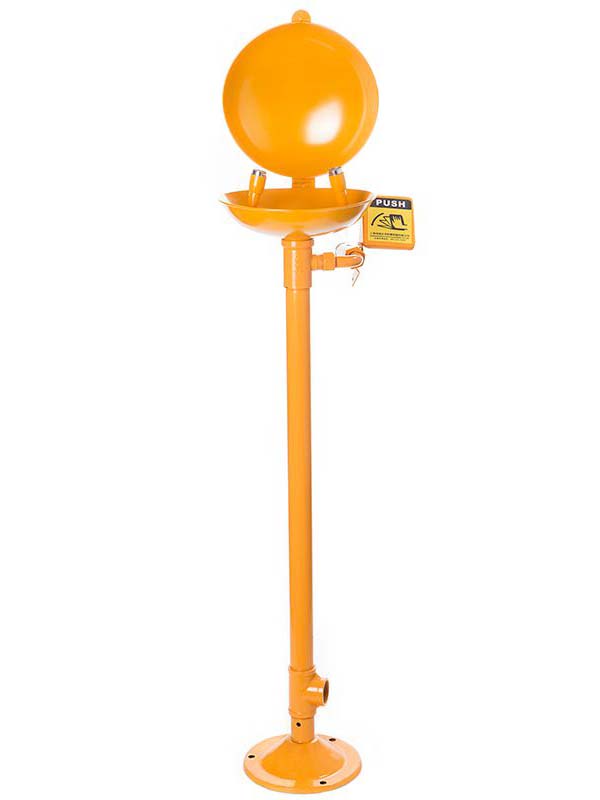

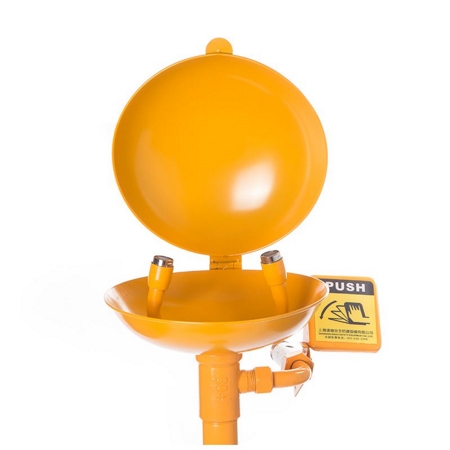

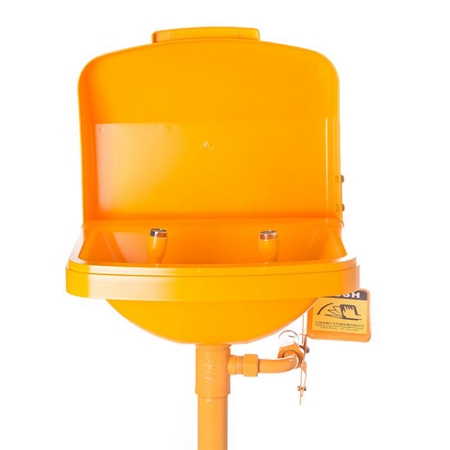

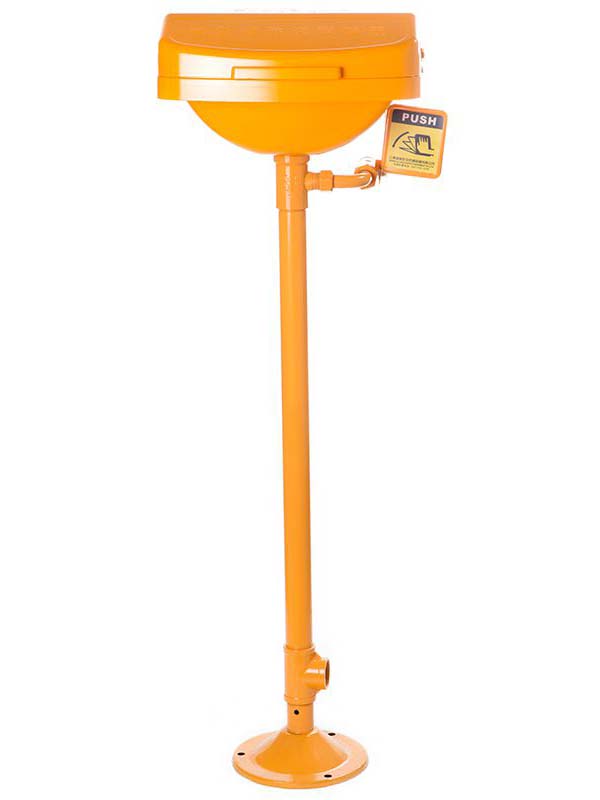

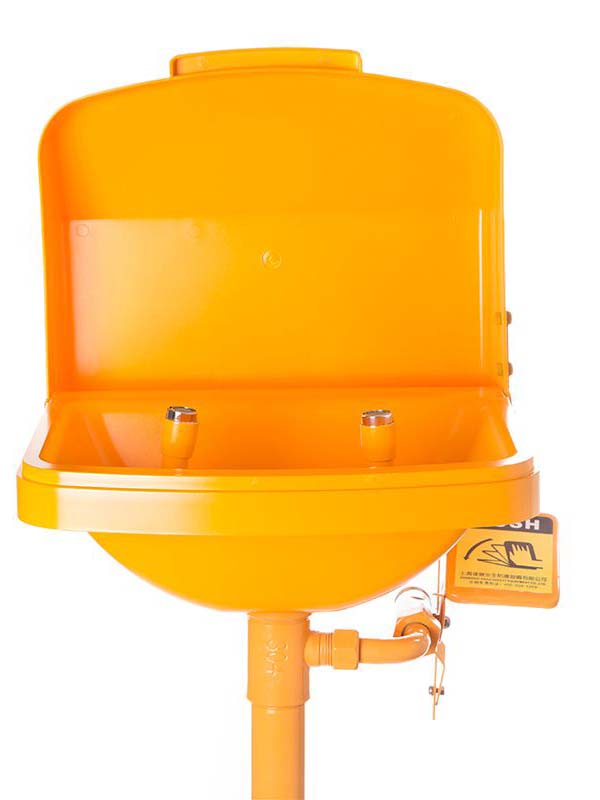

DAAO6623-X Covered Bowl Emergency Eyewash Station
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 1110mm (can be customized)
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-55℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel

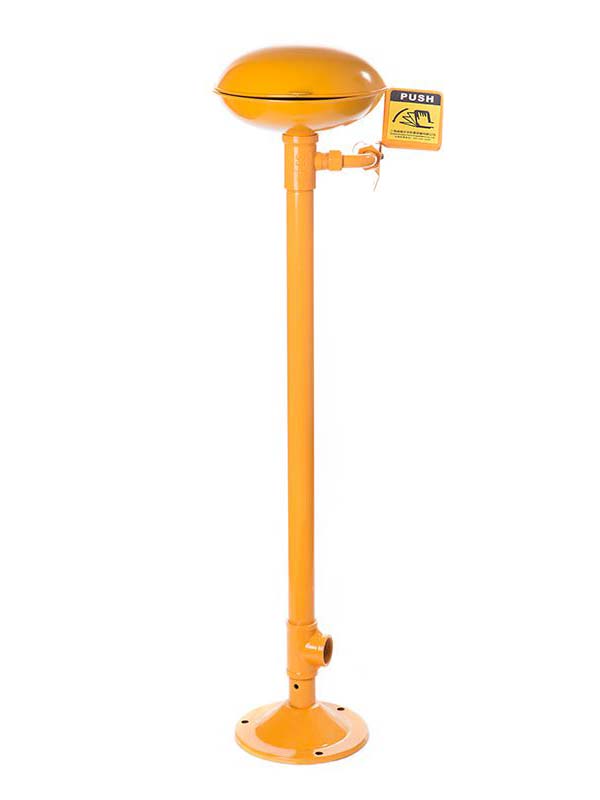

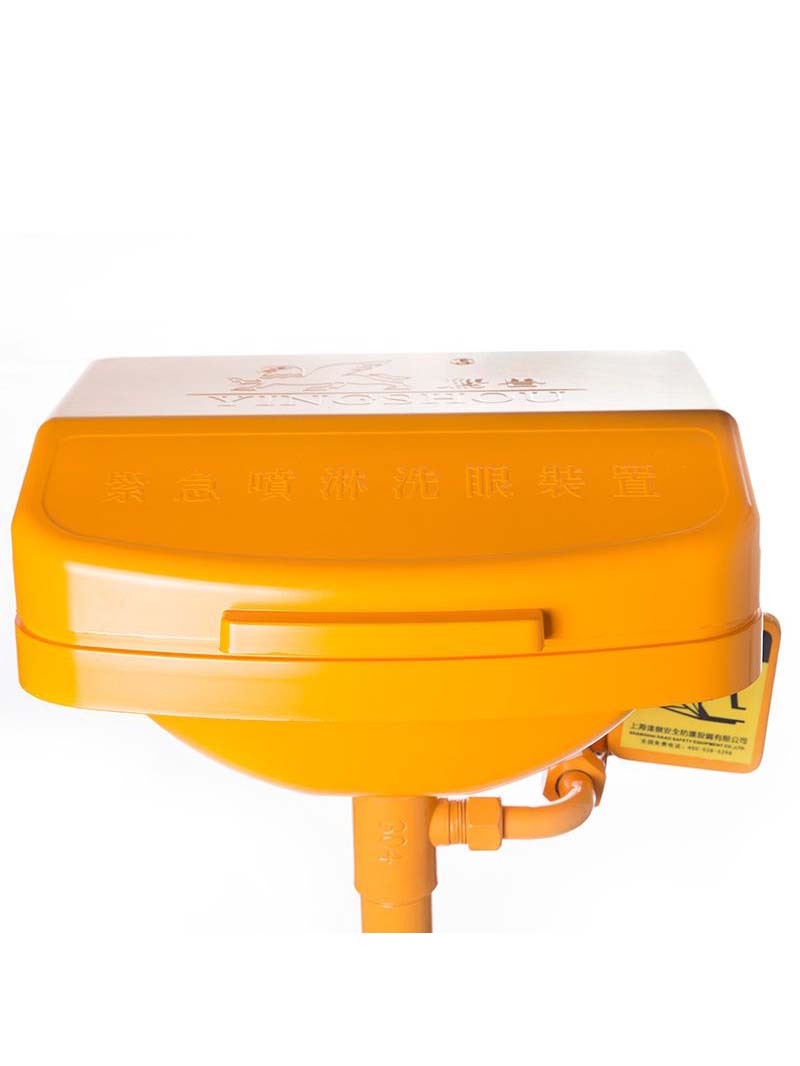

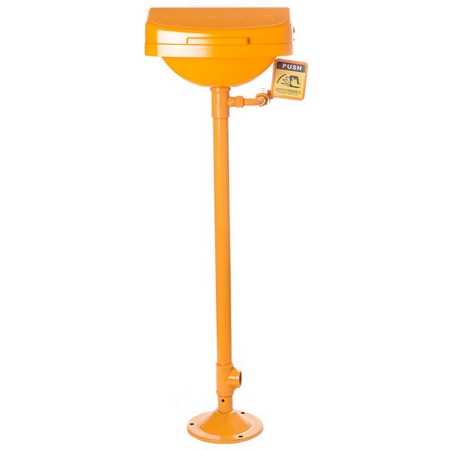

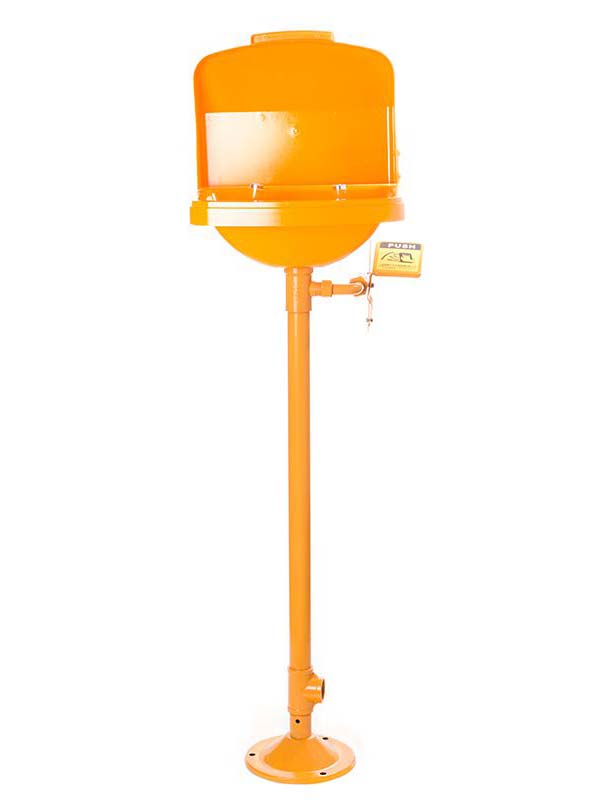

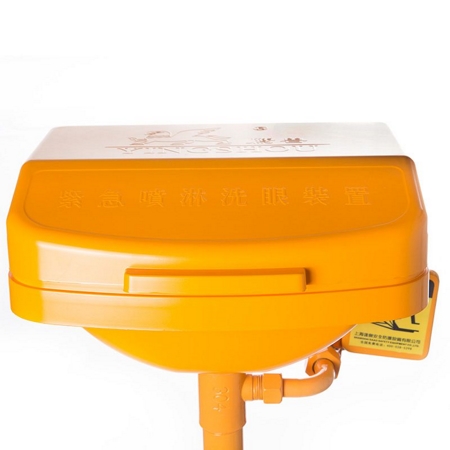

DAAO6623-D Pedestal Mounted Emergency Eyewash with Covered Bowl
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 1110mm (can be customized)
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-55℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min

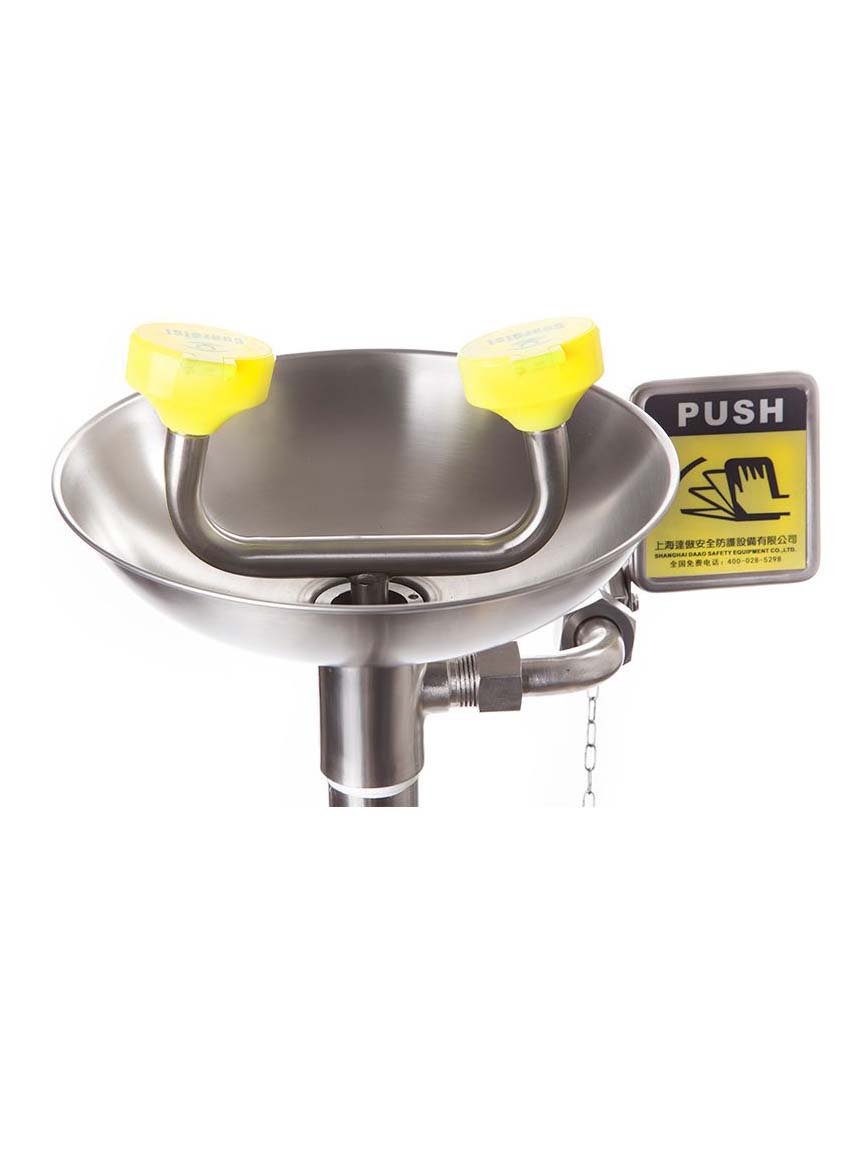

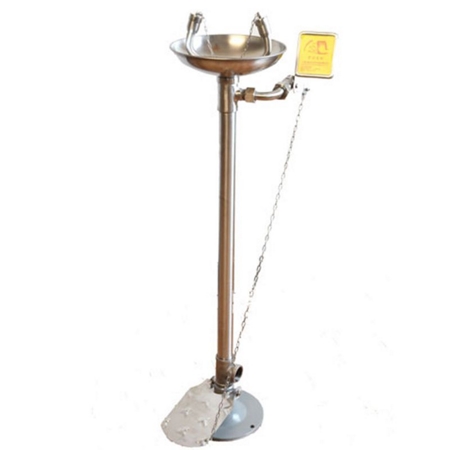

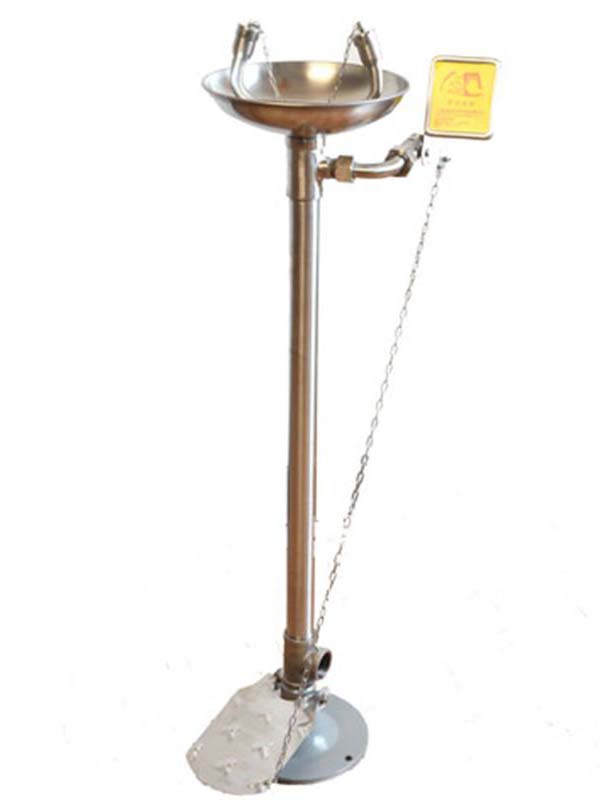

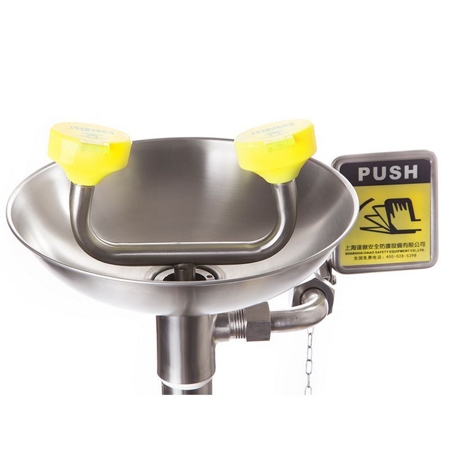

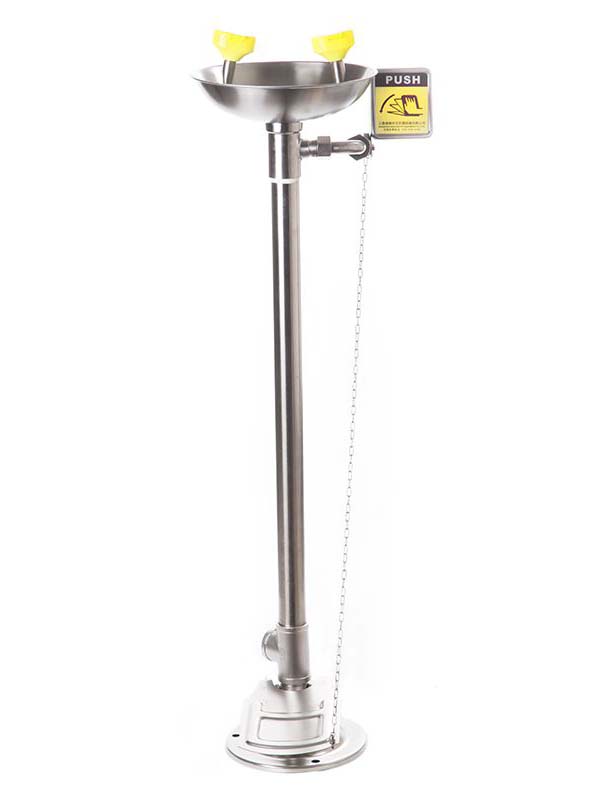

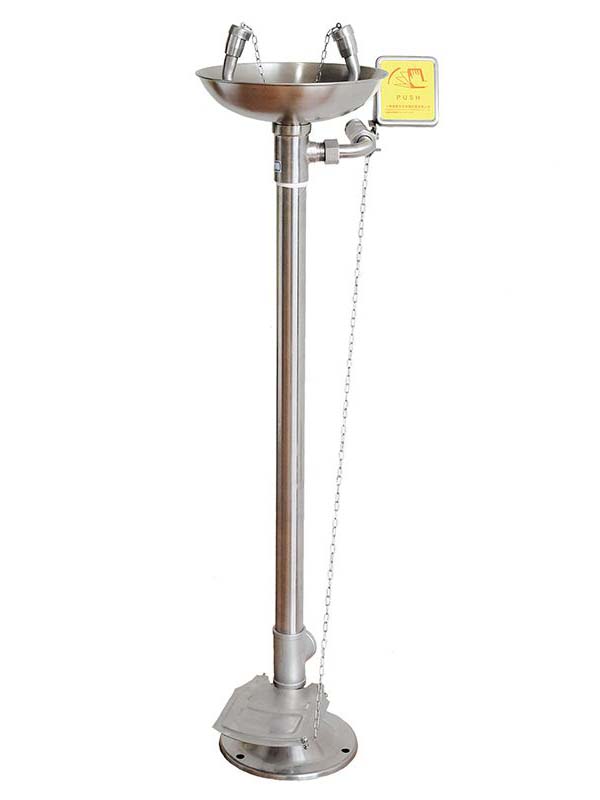

DAAO6620-J Pedestal Mounted Hand/Foot Operated Eyewash
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 1110mm (can be customized)
- Material: 304/316L stainless steel
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-55℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min

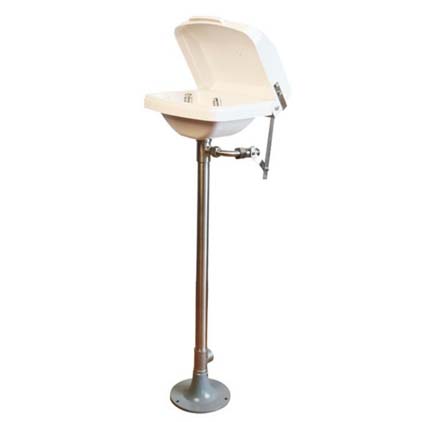

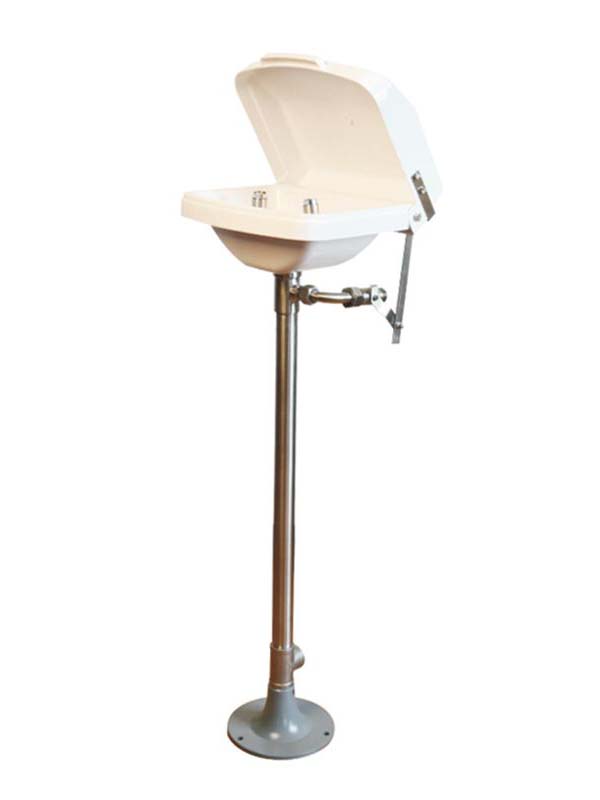

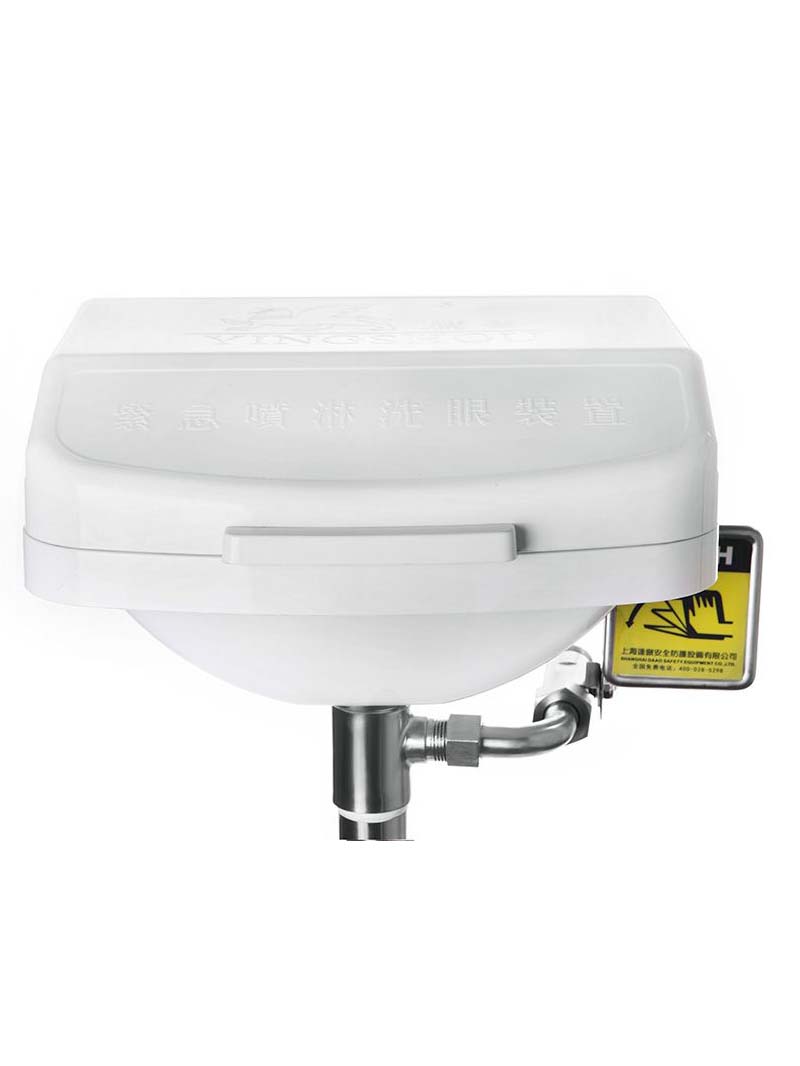

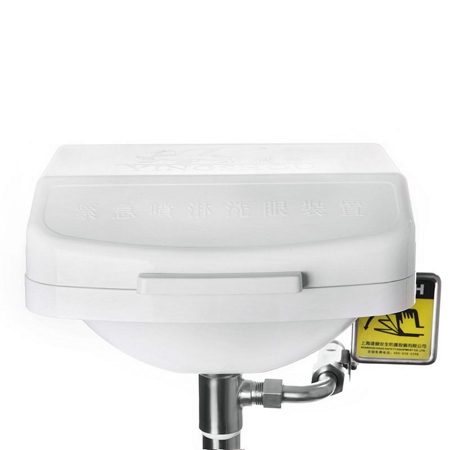

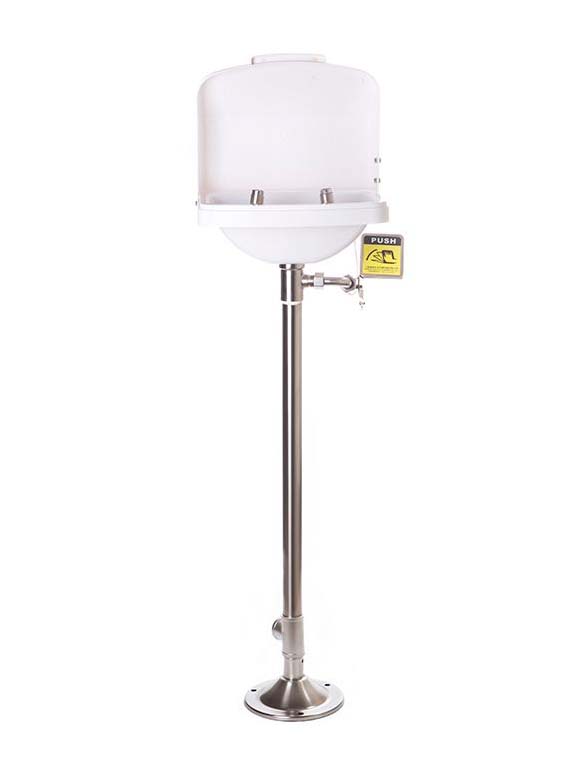

DAAO6620-D Freestanding Pedestal Mount Eyewash with ABS Bowl
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 1110mm (can be customized)
- Material: 304/316L stainless steel
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-55℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel

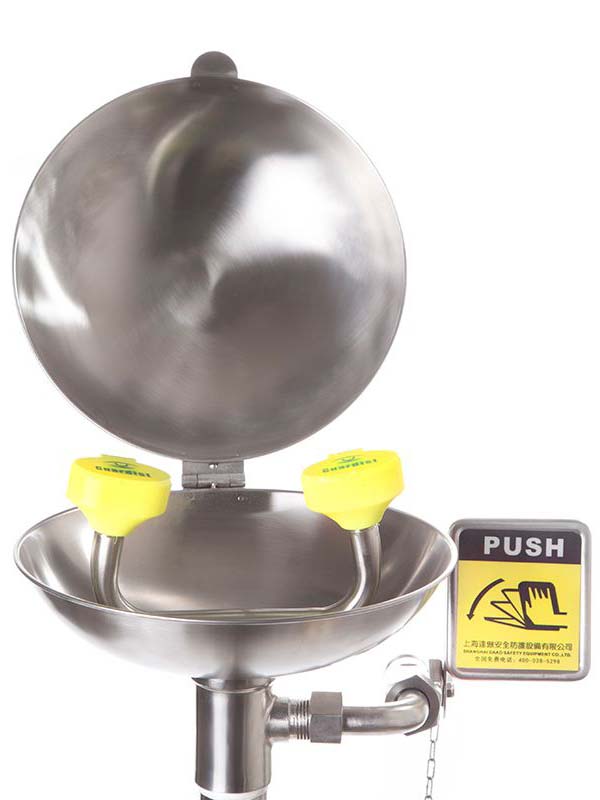

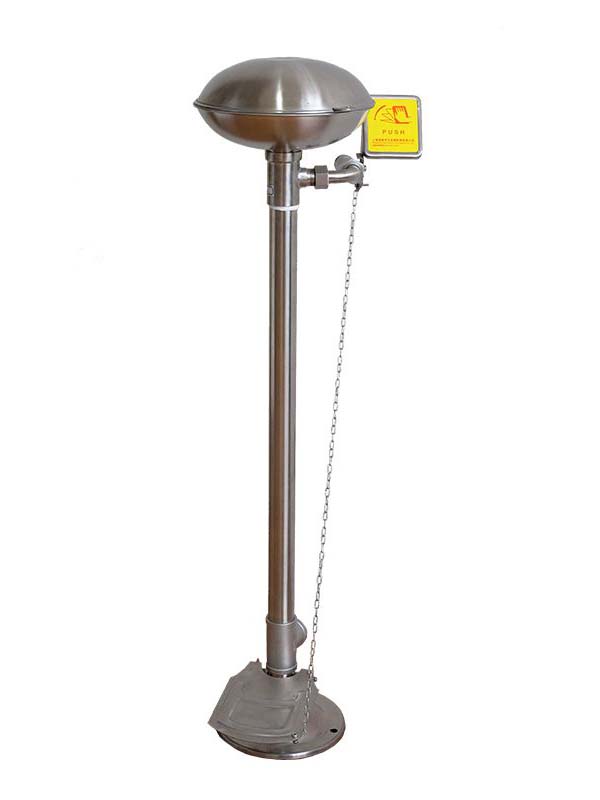

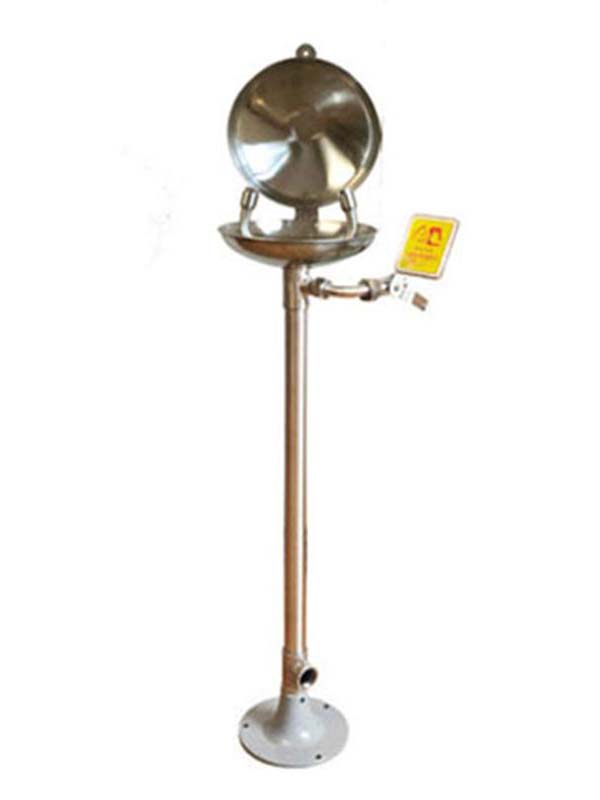

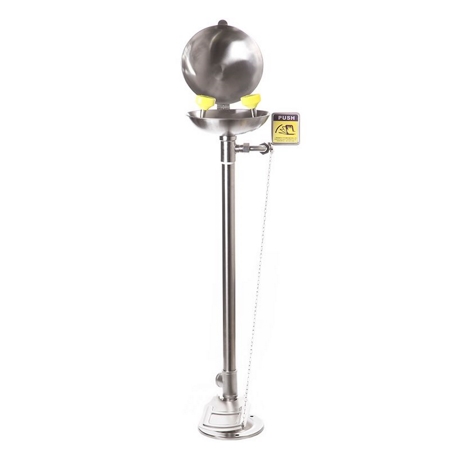

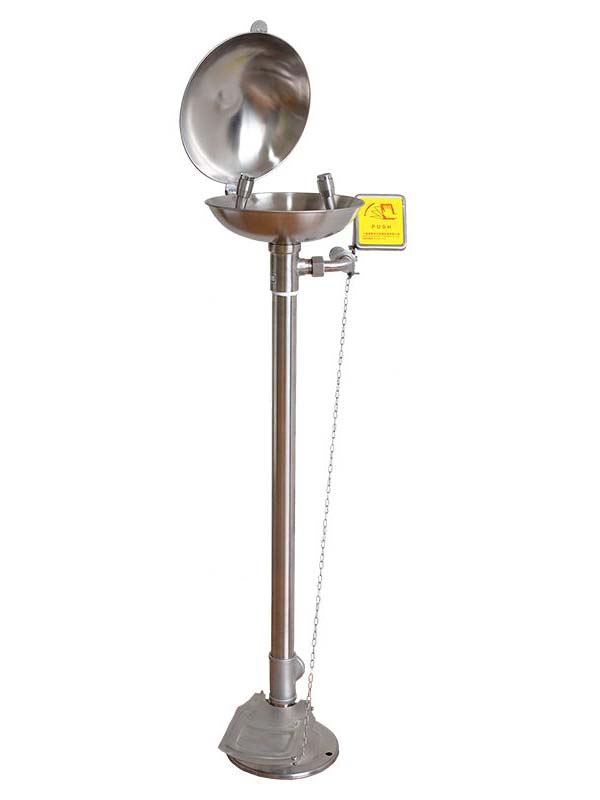

DAAO6620-X Pedestal Mounted Eyewash with Stainless Steel Cover
Compliance: ANSI Z 358.1-2014
Specifications- Height: 1110mm (can be customized)
- Material: 304/316L stainless steel
- Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-55℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel
- Eyewash includes: SUS304 stainless steel pipe, ball valve, bowl with dust cover

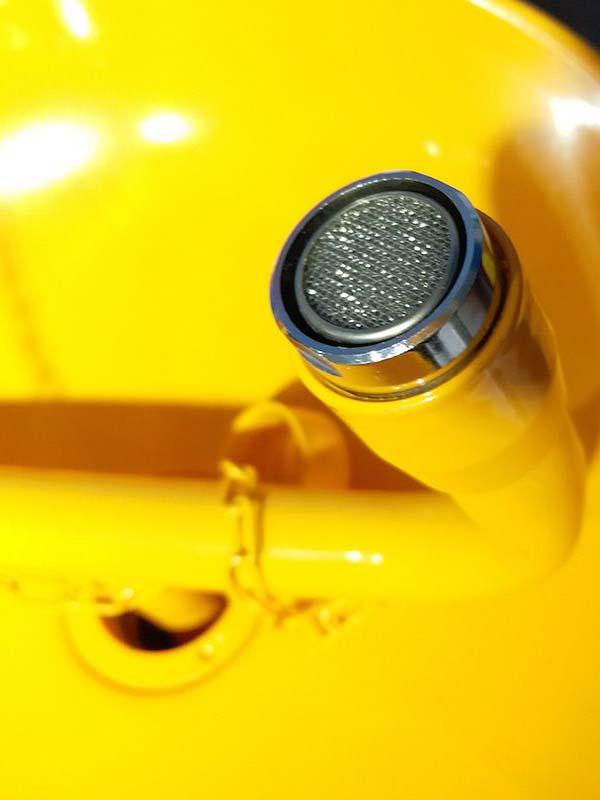

- Spray nozzle: stainless steel, built-in PP filter
- Others: stainless steel foot pedal available for all combination type
Water filter / Y strainer
Emergency Shower head
Ex-pro alarm
Scald protection valve
Pressure reducing valve
Ball valve
DAAO has been focusing on the production of emergency safety showers and eye wash units since 2007. This is why we have a huge variety of emergency eyewash equipment and safety showers such as freestanding safety showers, wall mounted eye wash stations, portable eye wash stations as well as emergency equipment accessories to suit the needs of quick and efficient full body decontamination. There is no limit to the applications, we can design and manufacture emergency eyewash stations and decontamination booths to suit your workplaces. Our safety showers and eyewash stations are engineered and made to international safety standards, they are approved in protecting employees from suffering major injuries due to contact with hazardous materials.
