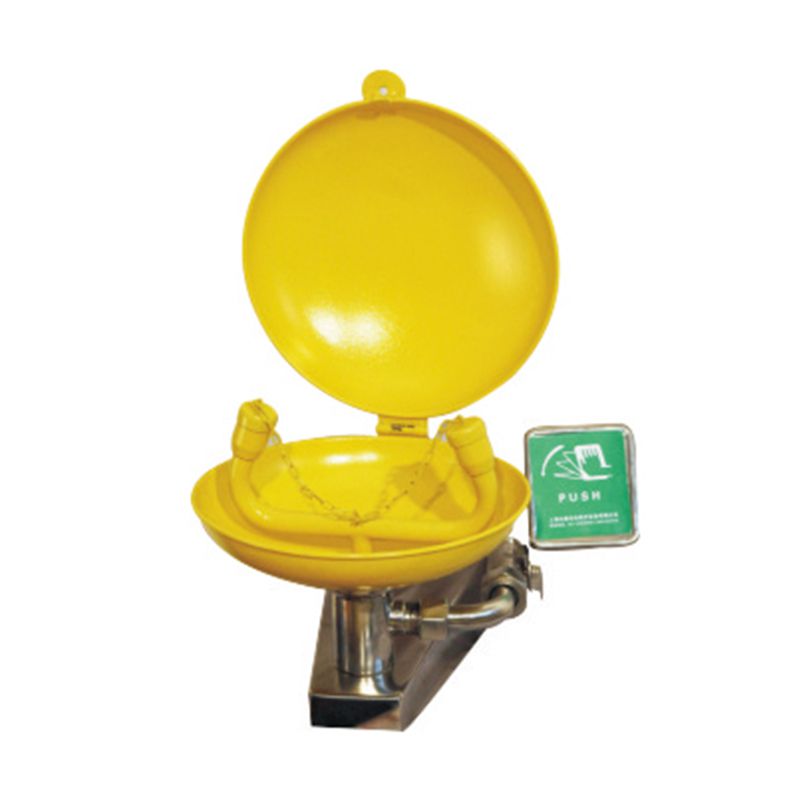

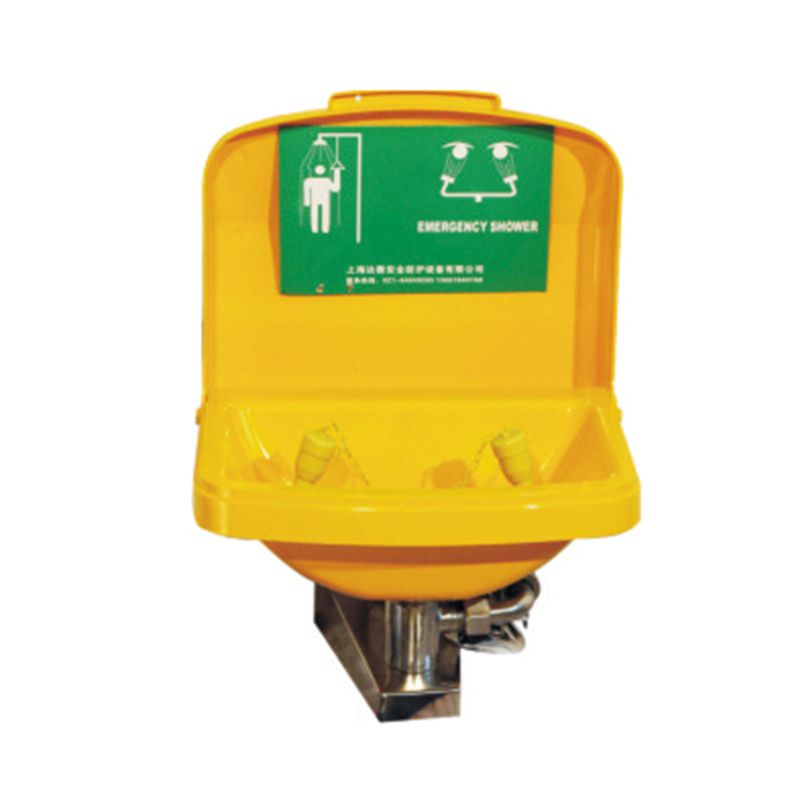

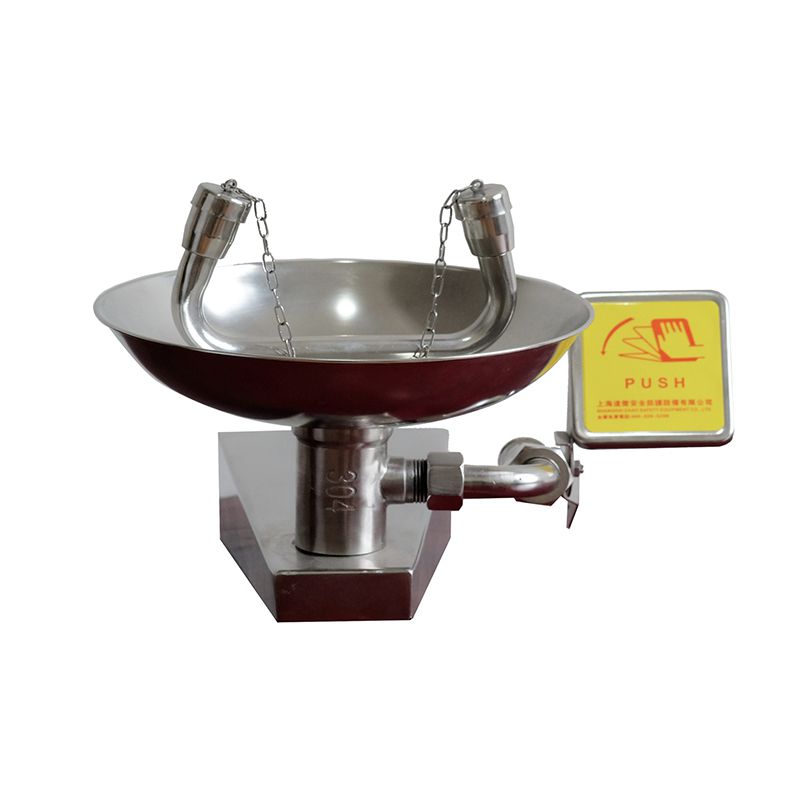

Wall Mounted Emergency Eyewash
Our wall mounted emergency eyewashes are made from wear-resistant stainless steel. The material of spray head, bowl and eyewash spray nozzle is ABS. The color of distinctive yellow makes it highly visible under emergency circumstance.
The following are examples of wall mounted emergency eyewashes that we’ve made. If you have special needs, please tell us.
- DAAO6640
- DAAO6643-X
- DAAO6643-D
- DAAO6640-X
Compliance: ANSI Z 358.1-2014
Specifications- Height: 240mm (can be customized)
- Material: 304/316L stainless steel
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-40℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 240 mm (can be customized)
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-40℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 240mm (can be customized)
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-40℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 240mm (can be customized)
- Material: 304/316L stainless steel and ABS
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 5℃-40℃
- Inlet size: NPT 1/2”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel
- Water filter / Y strainer
- Emergency Shower head
- Ex-pro alarm
- Scald protection valve
- Pressure reducing valve
- Ball valve
