Combined Emergency Drench Shower & Eyewash
If there is any risk that accidental mishandling, spilling or splashing of corrosive and irritant chemicals could happen in your workplace, you may need to install a combined emergency drench shower and eyewash to help you deal with all kinds of emergencies.
We provide a wide variety of combined emergency drench showers and eyewashes. The following are examples of products that we’ve made. If you have special needs, please tell us. Our specialist team will help us design and manufacture the kind of combined emergency drench shower and eyewash that you need.

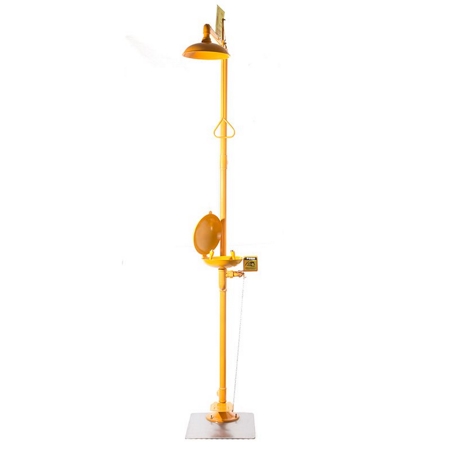

- DAAO6613-XJ

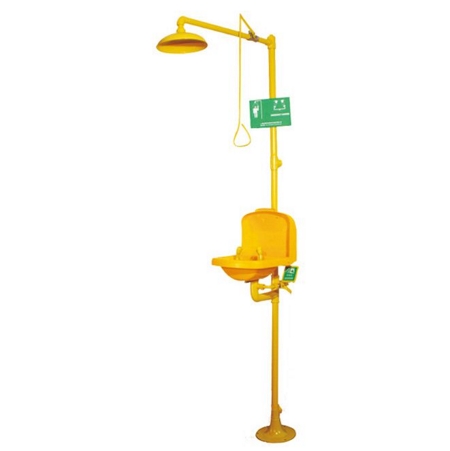

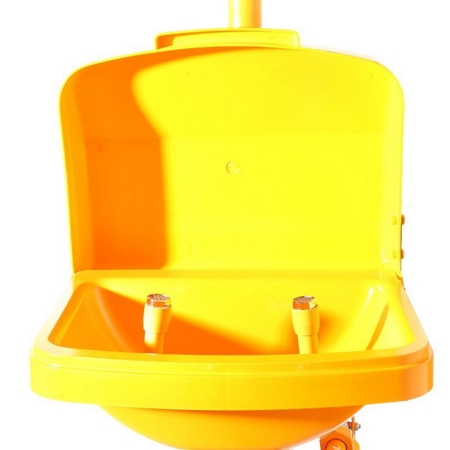

- DAAO6613-D

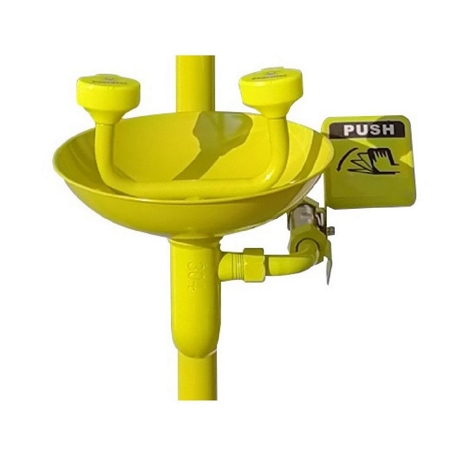

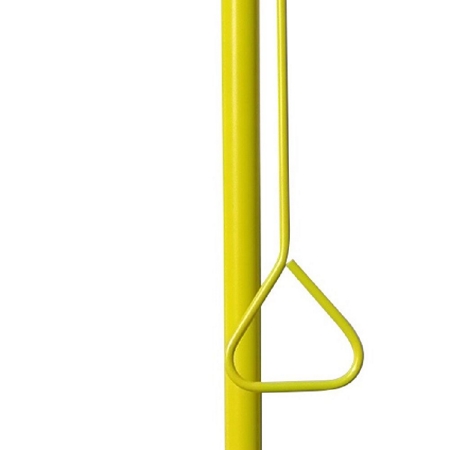

- DAAO6610-Y

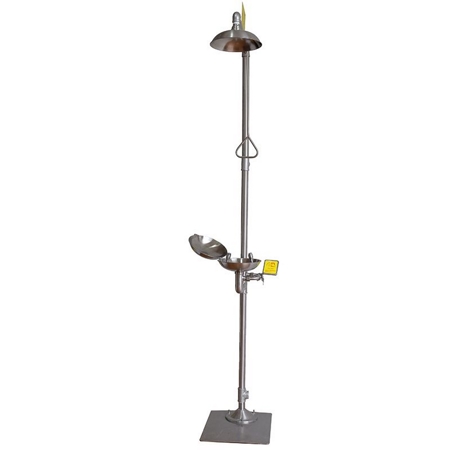

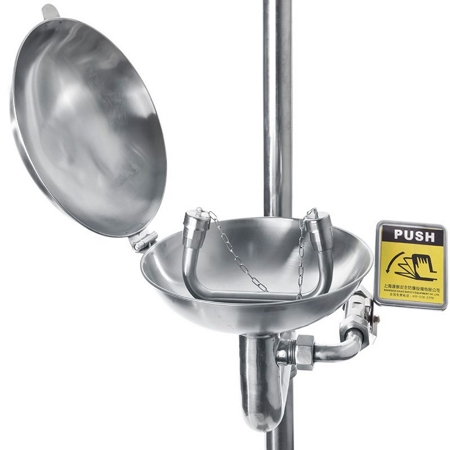

- DAAO6610-X

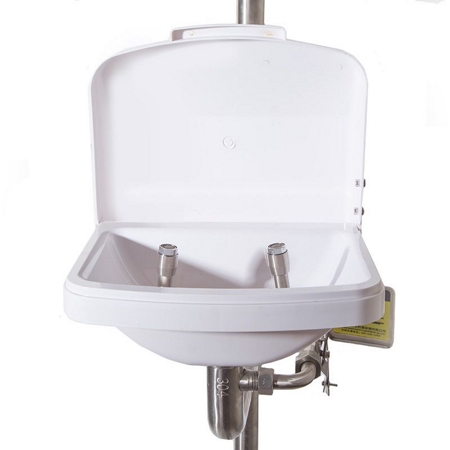

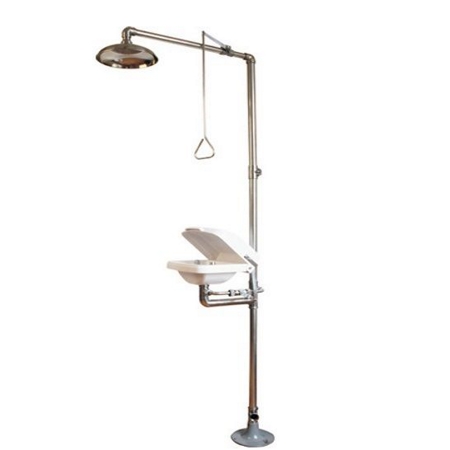

- DAAO6610-D
- DAAO6613

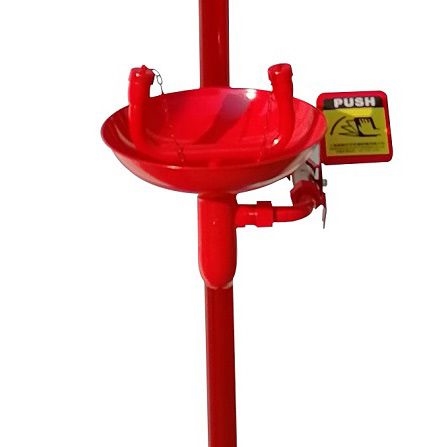

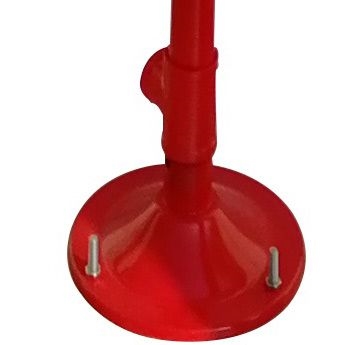

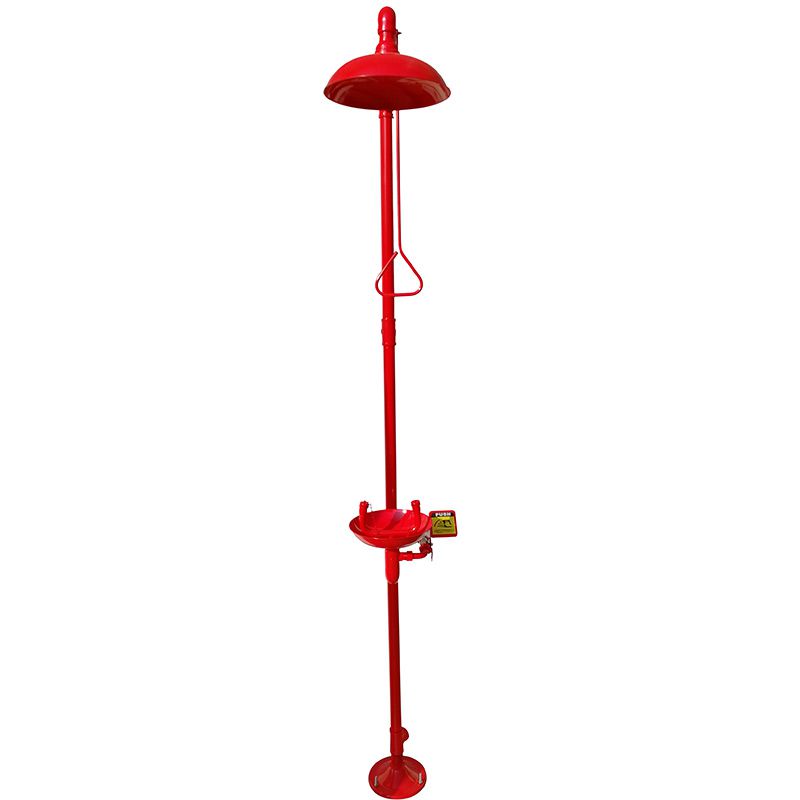

- DAAO6610-R

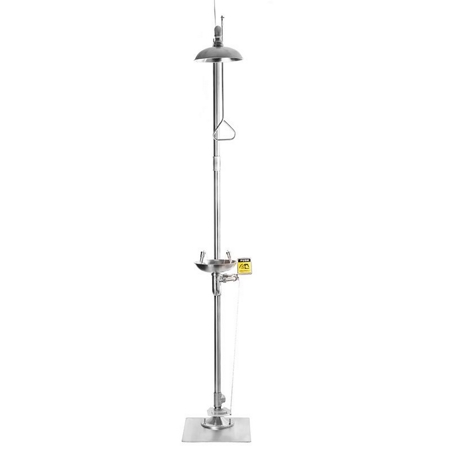

- DAAO6610-J
- DAAO6610-D
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel and ABS coating
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel and PVC and ABS coating
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel and Teflon coating
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel and PVC
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm
- Material: 304/316L stainless steel and ABS coating
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel and Teflon coating
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel and PVC
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel and PVC
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Water filter / Y strainer

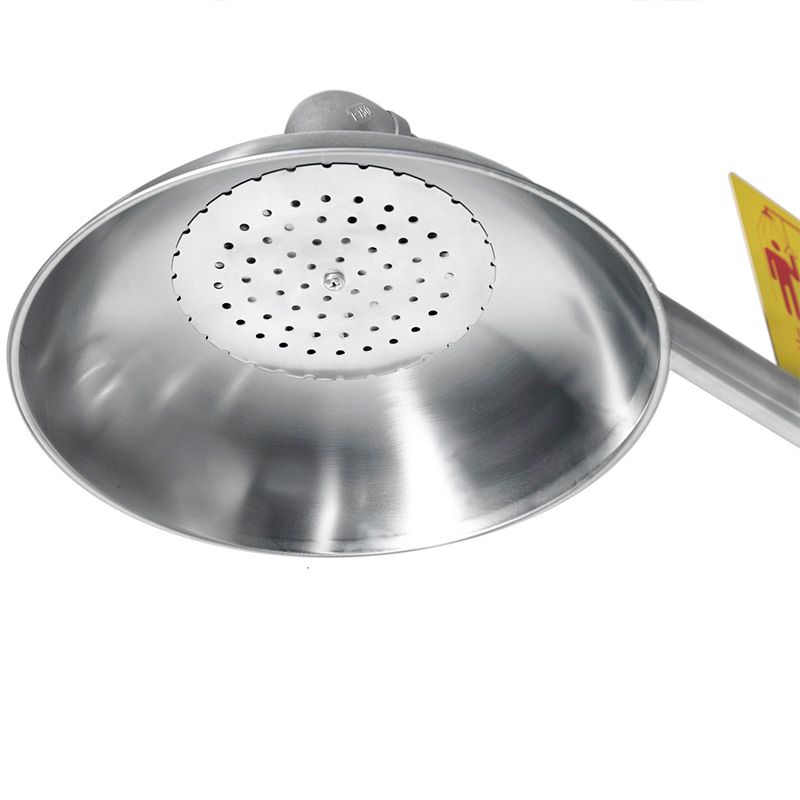

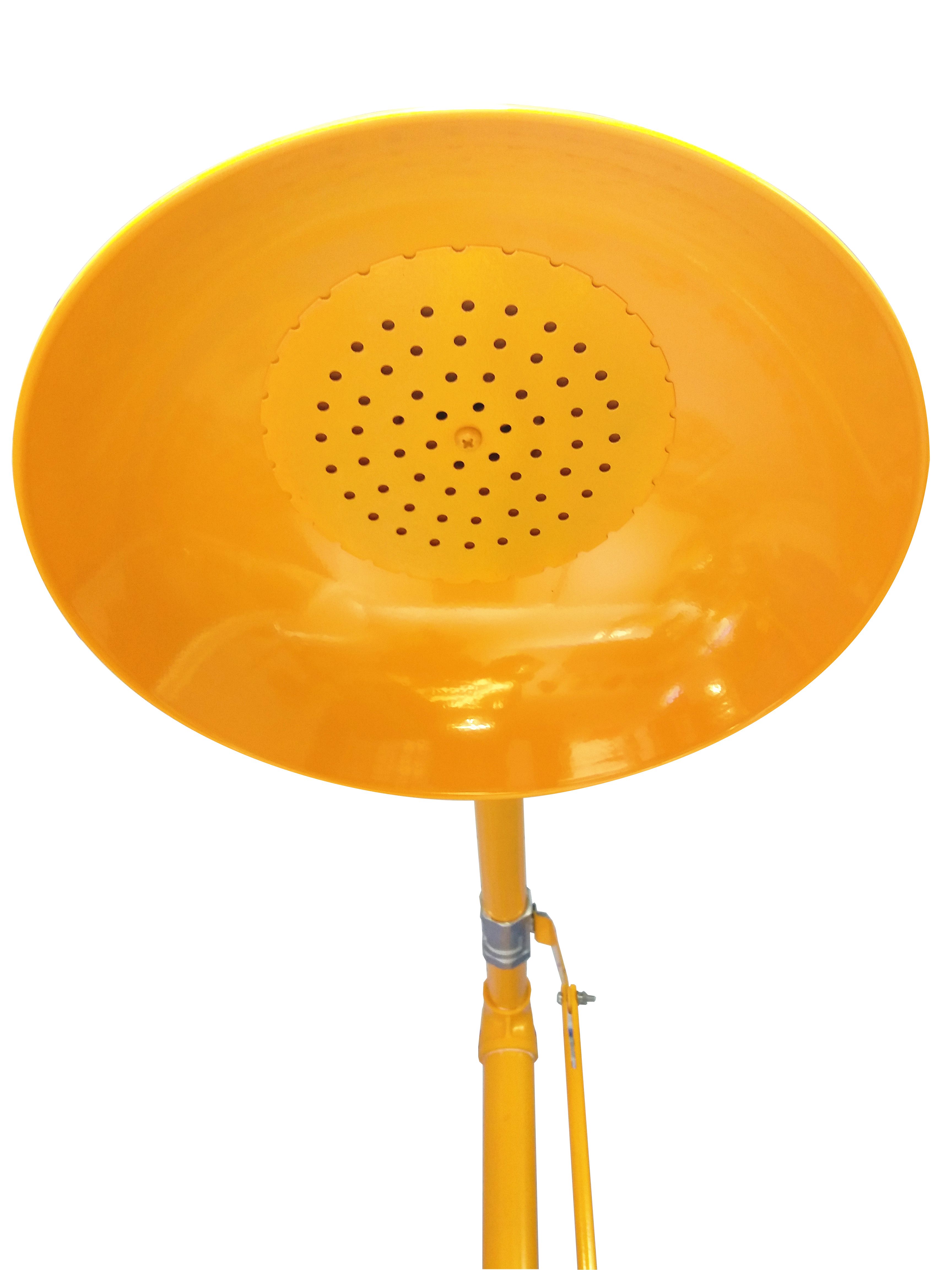

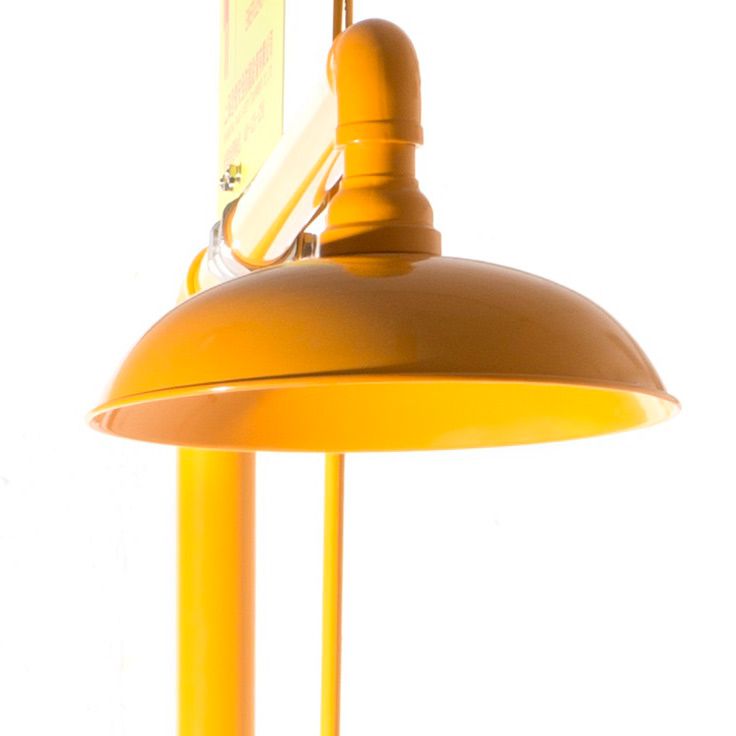

- Emergency Shower head
- Ex-pro alarm
- Scald protection valve
- Pressure reducing valve
- Ball valve
