Anti-freeze Emergency Shower & Eyewash Station

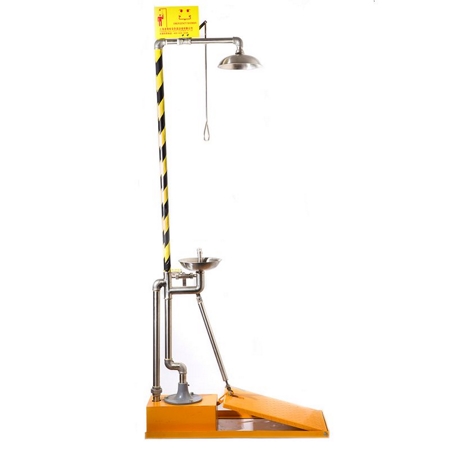

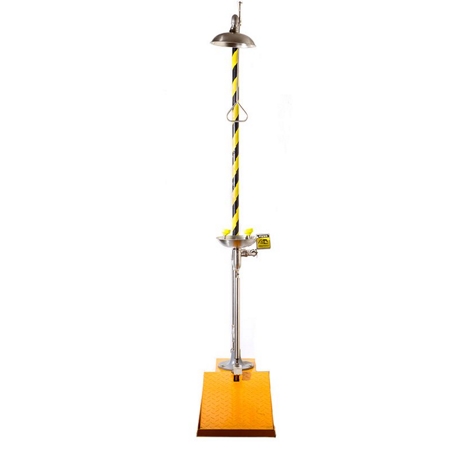

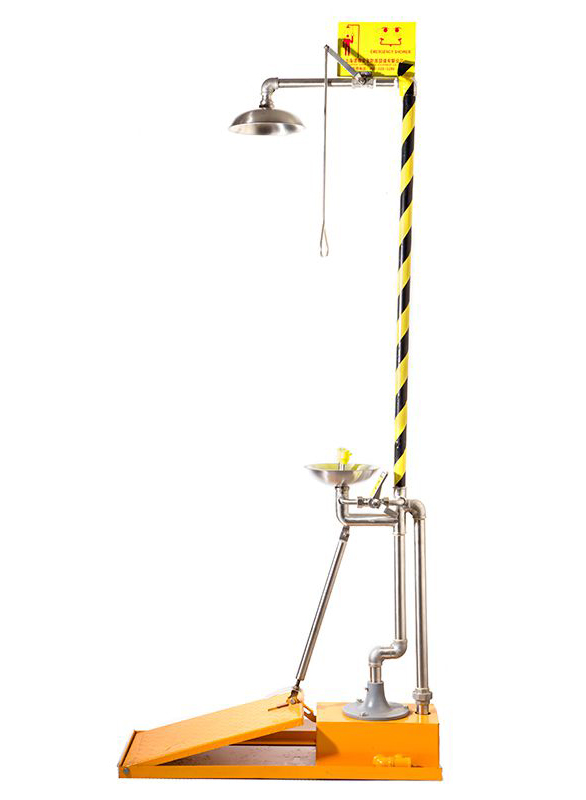

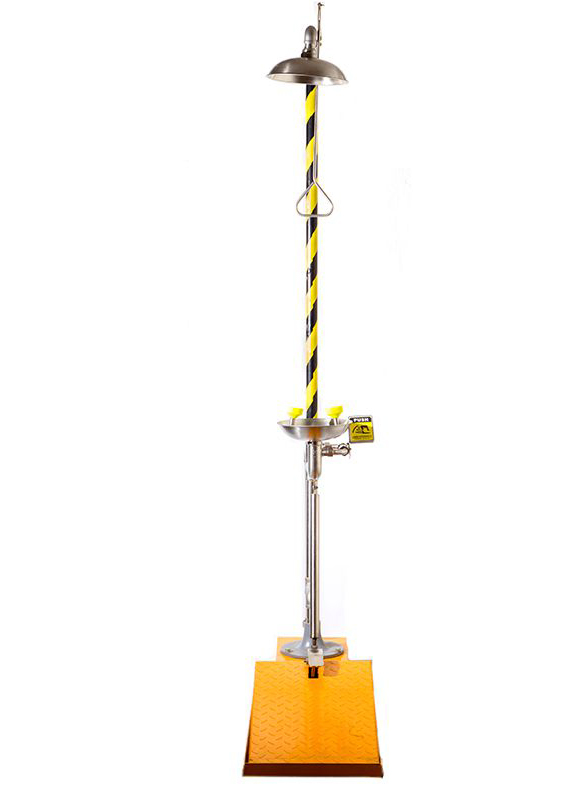

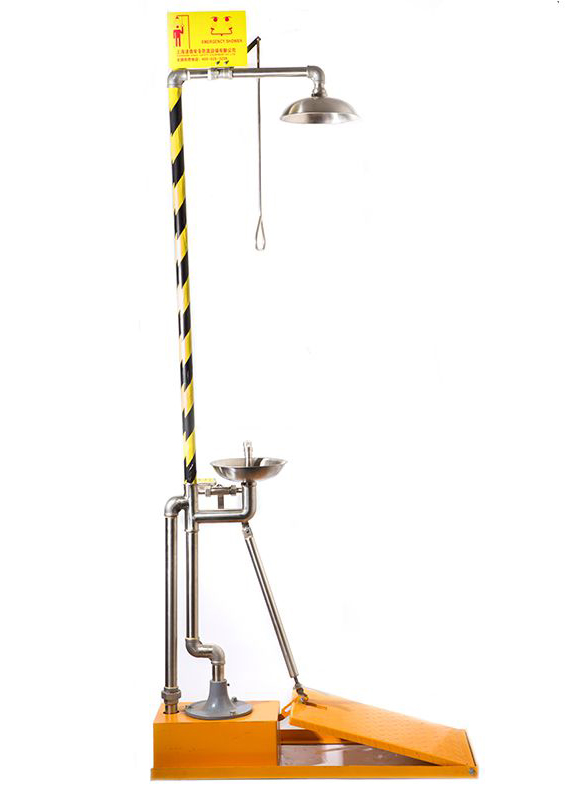

DAAO6615 Anti-freeze Emergency Shower & Eyewash Station
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Material: 304/316L stainless steel
- Height: 2410 mm (can be customized)
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 0℃-55℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75,7 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel

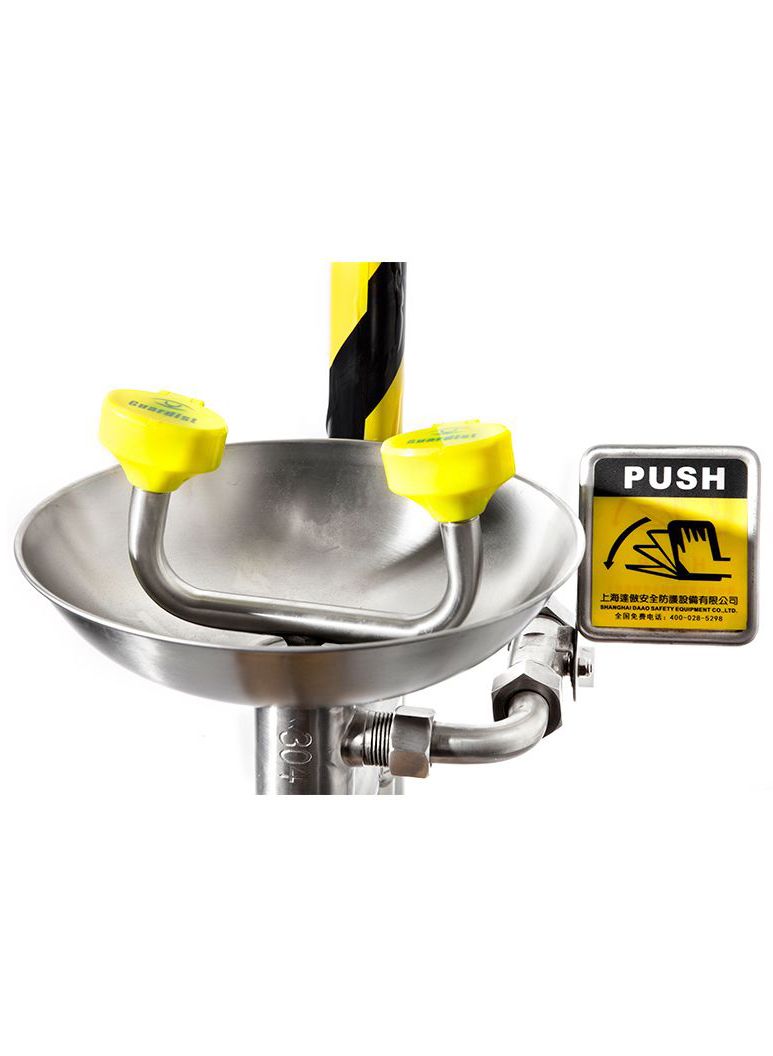

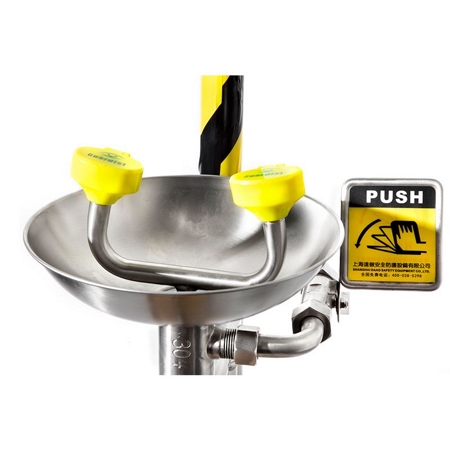

- Eyewash includes: SUS304 stainless steel pipe (1-1/4), ball valve, bowl with dust cover
- Spray nozzle: stainless steel, built-in PP filter

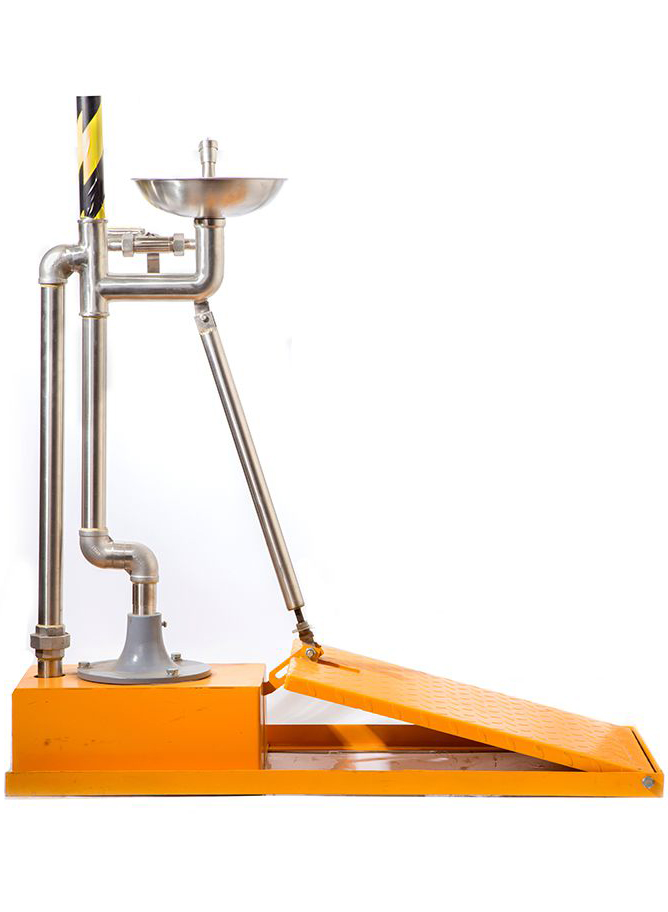

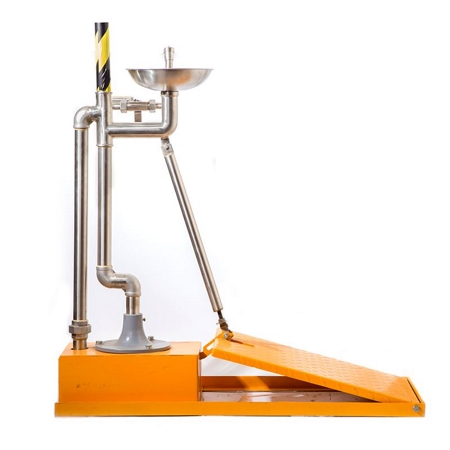

- Others: stainless steel foot pedal available
Water filter / Y strainer
Emergency Shower head
Ex-pro alarm
Scald protection valve
Pressure reducing valve
Ball valve
DAAO has been focusing on the production of emergency safety showers and eye wash units since 2007. This is why we have a huge variety of emergency eyewash equipment and safety showers such as freestanding safety showers, wall mounted eye wash stations, portable eye wash stations as well as emergency equipment accessories to suit the needs of quick and efficient full body decontamination. There is no limit to the applications, we can design and manufacture emergency eyewash stations and decontamination booths to suit your workplaces. Our safety showers and eyewash stations are engineered and made to international safety standards, they are approved in protecting employees from suffering major injuries due to contact with hazardous materials.
