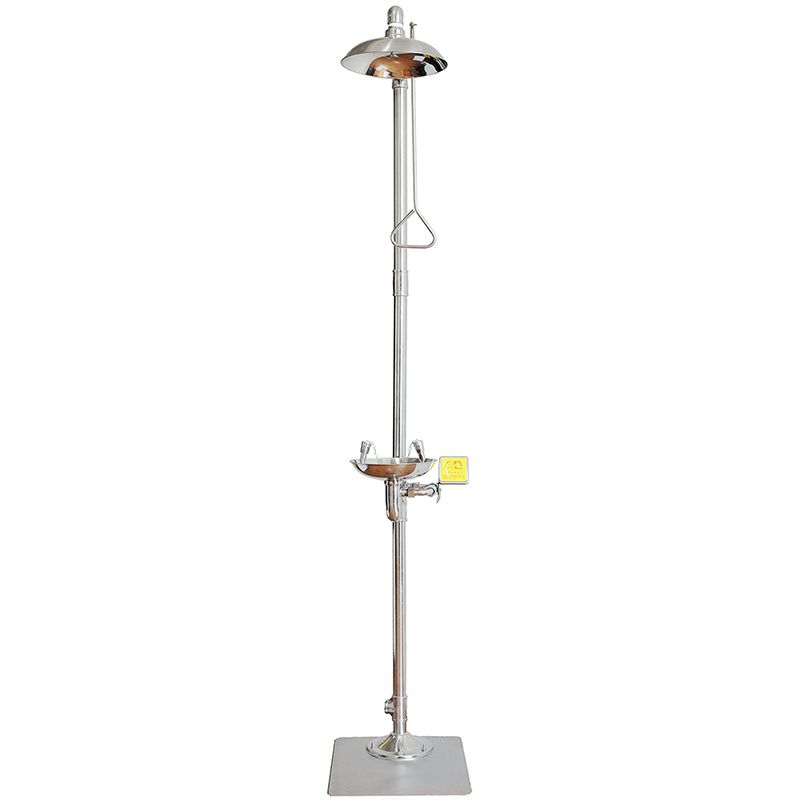

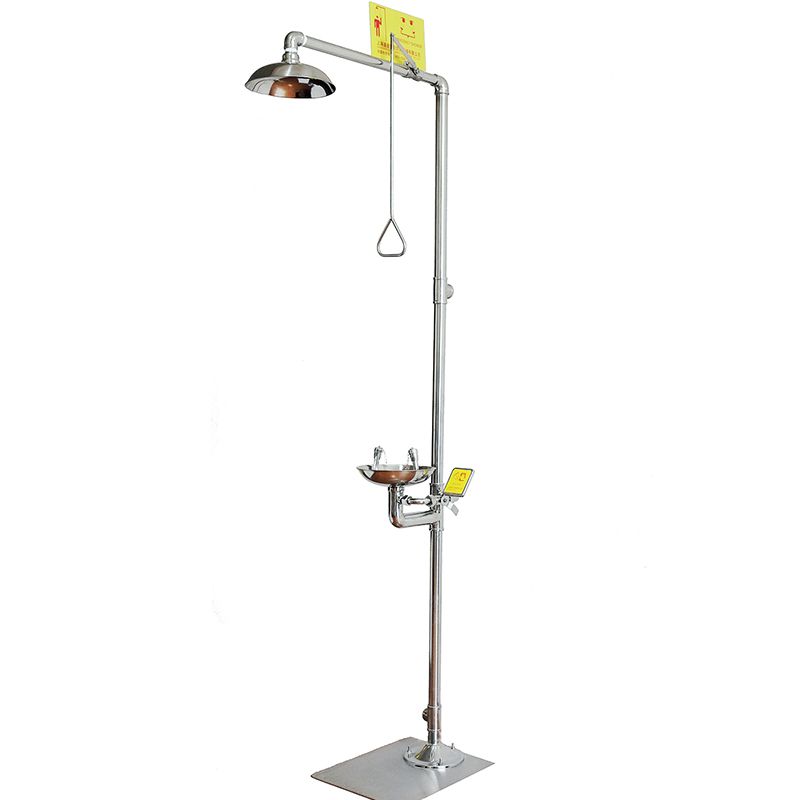

Stainless Steel Combination Shower & Eyewash
Compliance: ANSI Z 358.1-2014, EN15154.1/2:2006
Specifications- Height: 2410 mm (can be customized)
- Material: 304/316L stainless steel
- Pipe wall thickness: 2.5 mm
- Water pressure: 0.2 MPa-0.8 MPa
- Ambient temperature: 10℃-35℃
- Inlet size: NPT 1 1/4”
- Drain size: NPT 1 1/4”
- Flow rate (eye/face wash): ≥11.4 L/min
- Flow rate (shower): ≥75.7 L/min
- Options: color, material, dimension, etc.
- Material for shower head and bowl: ABS or stainless steel

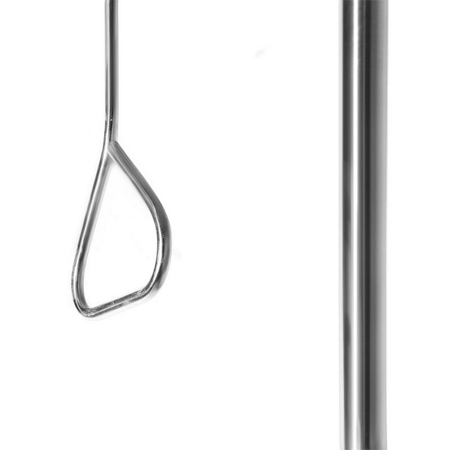

- Shower includes: SUS304 stainless steel pipe (1-1/4"), ball valve, drawbar with a diameter of 8mm, and spray head

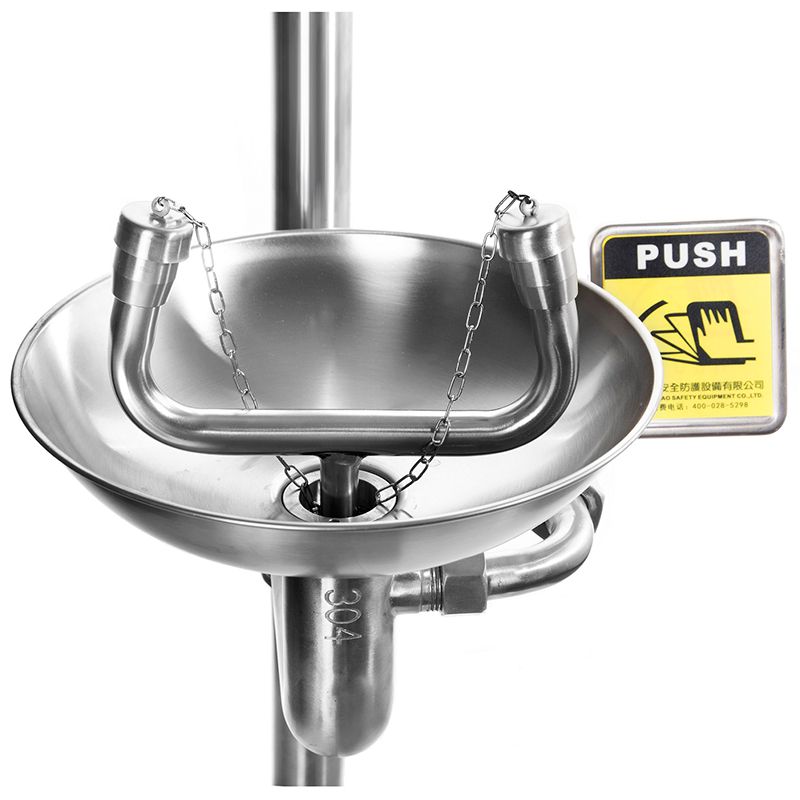

- Eyewash includes: SUS304 stainless steel pipe, ball valve, bowl with dust cover
- Spray nozzle: stainless steel, built-in PP filter
- Others: stainless steel foot pedal available for all combination type
DAAO has been a reliable manufacturer of emergency showers and eyewashes for 15 years. We can produce custom products that meets your special needs. Please see more combination emergency shower & eyewash units that we have made to find the product you are looking for.
More Models- Water filter / Y strainer

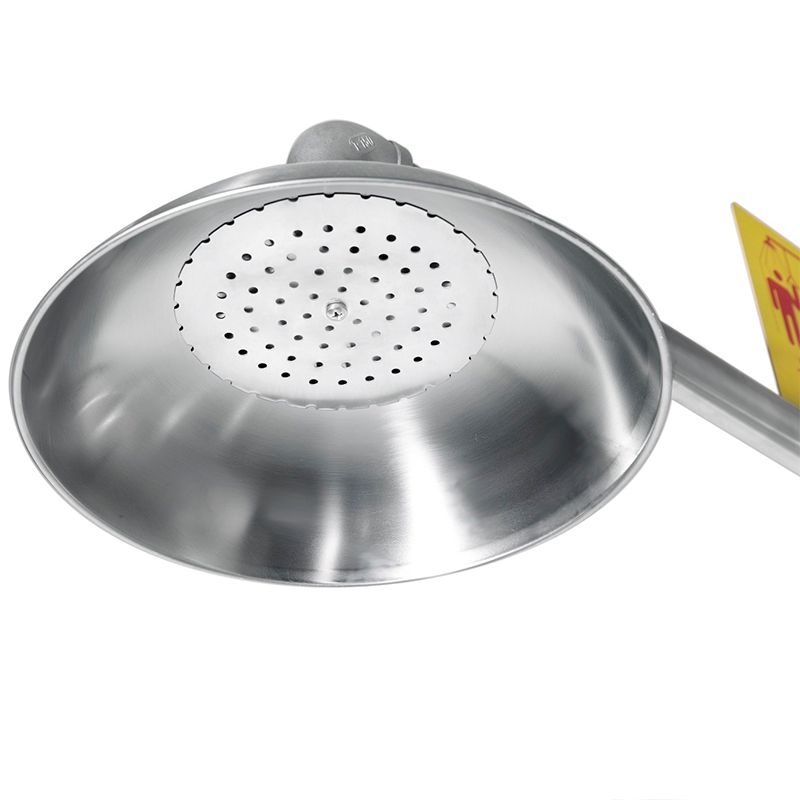

- Emergency Shower head
- Ex-pro alarm
- Scald protection valve
- Pressure reducing valve
- Ball valve
